MGJ2D051505SC DC/DC Conv, 2W, 15V/-5V, 0.08A/0.04A Murata Power Solutions

MURATA POWER SOLUTIONSUGS :MGJ2D051505SC Code de commande:2420059

Prix:
Prix ​​promotionnel€12,37

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (26 unité)

Documents et téléchargements

description

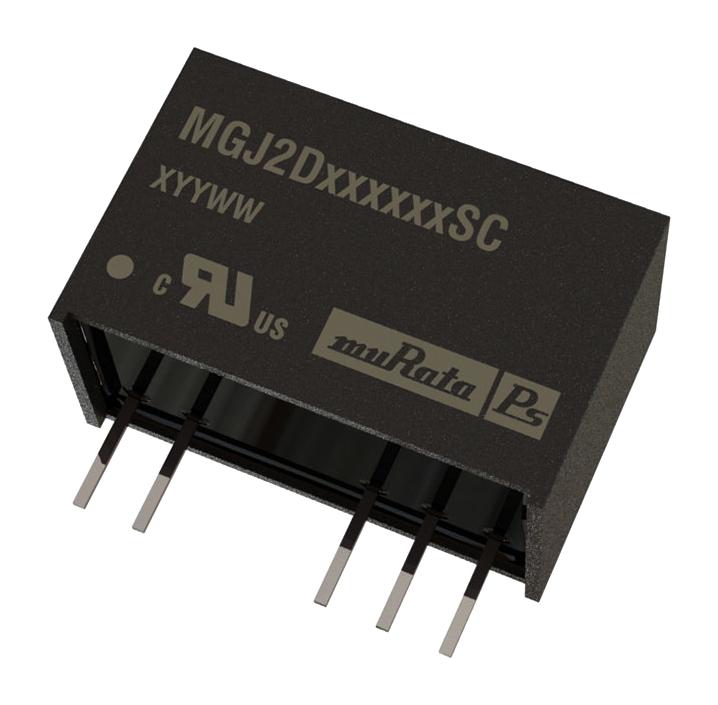

MURATA POWER SOLUTIONS - MGJ2D051505SC - Isolated Through Hole DC/DC Converter, Gate Drive, 1:1, 2 W, 2 Output, 15 V, 80 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 2W
  • Output Voltage - Output 1: 15V
  • Output Current - Output 1: 80mA
  • Output Voltage - Output 2: -5V
  • Output Current - Output 2: 40mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: MGJ2 Series
  • Input Voltage DC Min: 4.5V
  • Input Voltage DC Max: 5.5V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 9.95mm
  • Height: 12.65mm
  • Depth: 19.65mm
  • SVHC: No SVHC (07-Jul-2017)
  • No. of Outputs: 2Outputs
