MF25 2R2 Res, 2R2, 1%, 250MW, Axial, Metal Film multicomp Pro

MULTICOMP PROUGS :MF25 2R2 Code de commande:9341579

Prix:
Prix ​​promotionnel€0,25

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6191 unité)

Documents et téléchargements

description

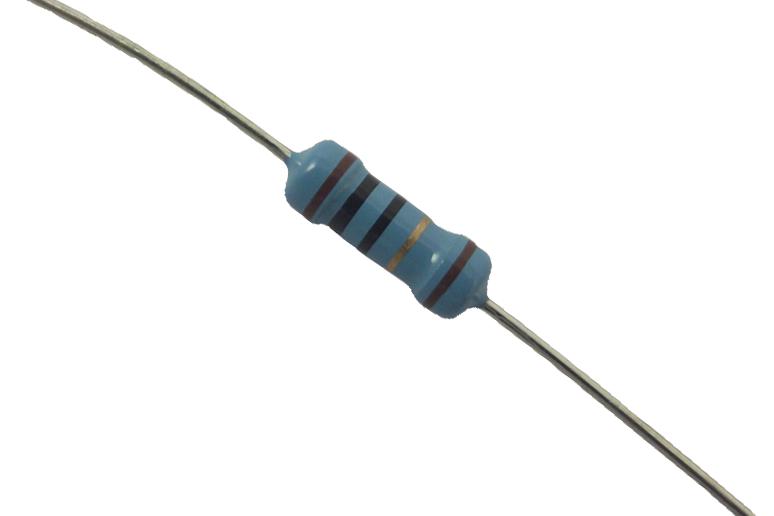

MULTICOMP PRO - MF25 2R2 - Through Hole Resistor, 2.2 ohm, MF25, 250 mW, ± 1%, Axial Leaded, 250 V

  • Resistance: 2.2ohm
  • Product Range: MF25 Series
  • Power Rating: 250mW
  • Resistance Tolerance: ± 1%
  • Resistor Case Style: Axial Leaded
  • Voltage Rating: 250V
  • Resistor Element Material: Metal Film
  • Temperature Coefficient: ± 50ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 2.5mm
  • Box Quantity: 5000
  • External Length / Height: 6.8mm
  • Full Power Rating Temperature: 70°C
  • Lead Diameter: 0.54mm
  • Lead Length: 28mm
  • No. of Pins: 2Pins
  • Operating Temperature Max: 155°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +155°C
  • Overload Voltage: 500V
  • Resistor Mounting: Through Hole
  • Temperature Coeff. +: 50ppm/°C
  • Temperature Coeff. -: 50ppm/°C
  • Tolerance +: 1%
  • Tolerance -: 1%
  • Voltage Rating V DC: 250V
