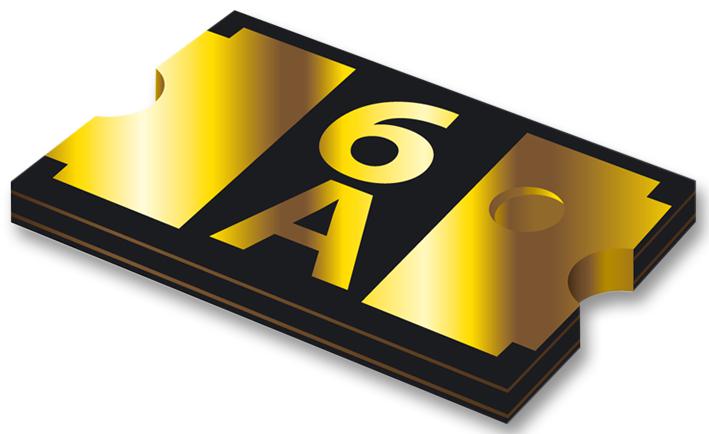

BOURNS - MF-USMF020-2 - Resettable Fuse, PPTC, 1210 (3225 Metric), MF-USMF, 30 VDC, 200 mA, 400 mA, 0.02 s
- Thermistor Mounting: SMD
- Product Range: MF-USMF Series
- Holding Current: 200mA
- Tripping Current: 400mA
- Voltage Rating: 30V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Automotive Qualification Standard: AEC-Q200
- SVHC: No SVHC (15-Jan-2018)
- Approval Bodies: CSA, TUV
- Approval Category: UL Recognised
- Carrying Current Max: 10A
- Current Max: 10A
- Current Temperature: 23°C
- External Depth: 2.57mm
- External Length / Height: 0.95mm
- External Width: 3.2mm
- Holding Current Max Ih: 0.2A
- Initial Resistance Max: 5ohm
- Initial Resistance Min: 0.4ohm
- Operating Voltage: 30V
- PTC Fuse Case Style: 1210 [3225 Metric]
- Resistance: 5ohm
- Resistance @ Temperature: 0.4ohm
- Resistance Temperature: 23°C
- Surface Tripped Temperature Max: 125°C
- Termination Type: Surface Mount Device
- Thermistor Type: PTC Resettable Fuse
- Trip Time: 0.02s
