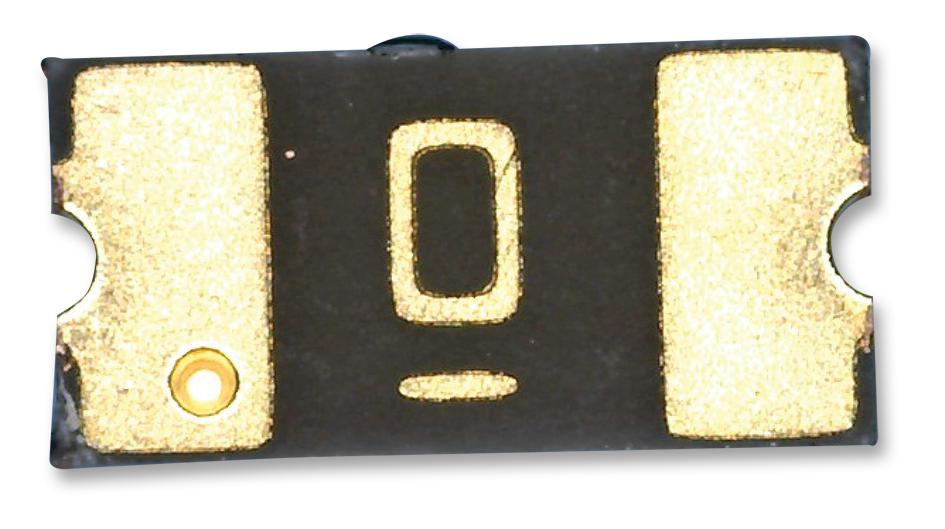

mF-NSMF012-2 Fuse, PTC Reset, 30V, 0.12A, SMD Bourns

BOURNSUGS :MF-NSMF012-2 Code de commande:1206715

Prix:
Prix ​​promotionnel€0,56

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (7800 unité)

Documents et téléchargements

description

BOURNS - MF-NSMF012-2 - Resettable Fuse, PPTC, 1206 (3216 Metric), MF-NSMF, 30 VDC, 120 mA, 290 mA, 0.2 s

  • Thermistor Mounting: SMD
  • Product Range: MF-NSMF Series
  • Holding Current: 120mA
  • Tripping Current: 290mA
  • Voltage Rating: 30V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Carrying Current Max: 10A
  • Current Max: 10A
  • Current Temperature: 23°C
  • External Depth: 1.4mm
  • External Length / Height: 0.7mm
  • External Width: 3mm
  • Holding Current Max Ih: 0.12A
  • Initial Resistance Max: 8.5ohm
  • Initial Resistance Min: 1.35ohm
  • Operating Voltage: 30V
  • PTC Fuse Case Style: 1206 [3216 Metric]
  • Resistance @ 10% Rated Current Typ: 8.5ohm
  • Resistance @ Temperature: 1.35ohm
  • Resistance Temperature: 23°C
  • Tab Width: 0.25mm
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC Resettable Fuse
  • Trip Time: 0.2s
