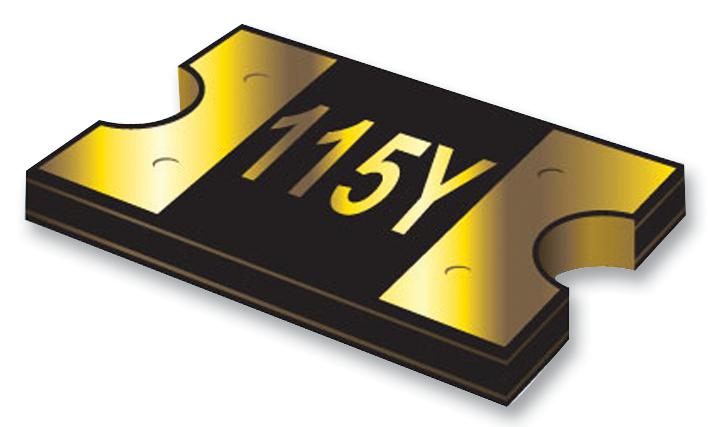

mF-MSMF150-2 MULTIFUSE, SMD, 1.5A Bourns

BOURNSUGS :MF-MSMF150-2 Code de commande:9350357

Prix:
Prix ​​promotionnel€0,67

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2170 unité)

Documenten en downloads

description

BOURNS - MF-MSMF150-2 - Resettable Fuse, PPTC, 1812 (4532 Metric), MF-MSMF, 6 VDC, 1.5 A, 3 A, 0.5 s

  • Thermistor Mounting: SMD
  • Product Range: MF-MSMF Series
  • Holding Current: 1.5A
  • Tripping Current: 3A
  • Voltage Rating: 6V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: No SVHC (15-Jan-2018)
  • Carrying Current Max: 100A
  • Case Material: Epoxy polymer
  • Current Max: 100A
  • External Depth: 0.38mm
  • External Length / Height: 3.24mm
  • External Width: 4.55mm
  • Holding Current Max Ih: 1.5A
  • Initial Resistance Max: 0.12ohm
  • Initial Resistance Min: 0.03ohm
  • Operating Voltage: 6V
  • PTC Fuse Case Style: 1812 [4532 Metric]
  • Pitch Max: 4.73mm
  • Pitch Min: 4.37mm
  • Resistance: 0.03ohm
  • Resistance @ Temperature: 0.12ohm
  • Resistance Temperature: 23°C
  • Surface Tripped Temperature Max: 125°C
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC Resettable Fuse
