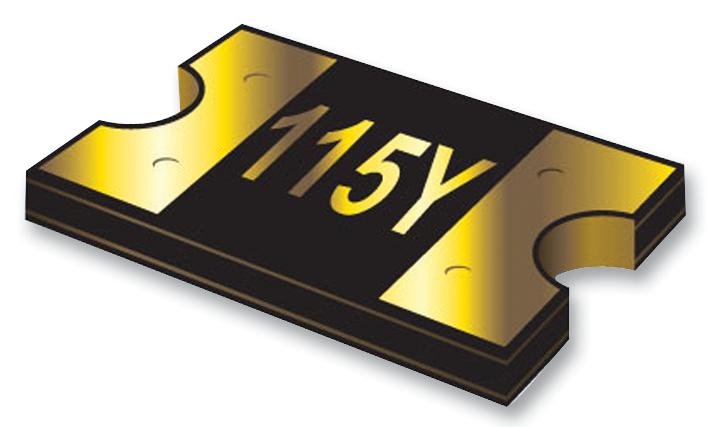

mF-MSMF075/24-2 MULTIFUSE, SMD, 1812, 0.75A, 24V Bourns

BOURNSUGS :MF-MSMF075/24-2 Code de commande:1652169

Prix:
Prix ​​promotionnel€0,55

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6045 unité)

Documents et téléchargements

description

BOURNS - MF-MSMF075/24-2 - Resettable Fuse, PPTC, 1812 (4532 Metric), MF-MSMF, 24 VDC, 750 mA, 1.5 A, 0.2 s

  • Thermistor Mounting: SMD
  • Product Range: MF-MSMF Series
  • Holding Current: 750mA
  • Tripping Current: 1.5A
  • Voltage Rating: 24V
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: AEC-Q200
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Carrying Current Max: 40A
  • Current Max: 40A
  • External Depth: 0.7mm
  • External Length / Height: 3.24mm
  • External Width: 4.55mm
  • Holding Current Max Ih: 0.75A
  • Initial Resistance Max: 0.45ohm
  • Initial Resistance Min: 0.11ohm
  • Operating Voltage: 24V
  • PTC Fuse Case Style: 1812 [4532 Metric]
  • Resistance: 0.11ohm
  • Resistance @ Temperature: 0.45ohm
  • Resistance Temperature: 23°C
  • Surface Tripped Temperature Max: 125°C
  • Termination Type: Surface Mount Device
  • Thermistor Type: PTC Resettable Fuse
  • Trip Time: 0.2s
