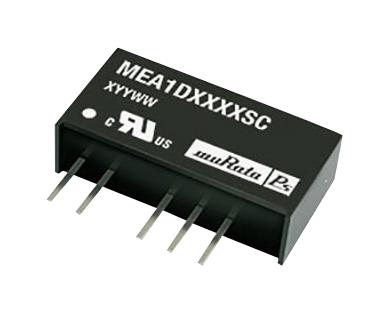

MEA1D2412SC Converter, DC/DC, 1W, 24 TO ±12V Murata Power Solutions

MURATA POWER SOLUTIONSUGS :MEA1D2412SC Code de commande:1818315

Prix:
Prix ​​promotionnel€7,55

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (11 unité)

Documents et téléchargements

description

MURATA POWER SOLUTIONS - MEA1D2412SC - Isolated Through Hole DC/DC Converter, 1kV Isolation, ITE, 1:1, 1 W, 2 Output, 12 V, 42 mA

  • No. of Outputs: 2 Output
  • Output Power Max: 1W
  • Output Voltage - Output 1: 12V
  • Output Current - Output 1: 42mA
  • Output Voltage - Output 2: -12V
  • Output Current - Output 2: 42mA
  • Output Voltage - Output 3: -
  • Output Current - Output 3: -
  • Product Range: MEA Series
  • Input Voltage DC Min: 21.6V
  • Input Voltage DC Max: 26.4V
  • DC / DC Converter Output Type: Fixed
  • DC / DC Converter Type: SIP
  • DC / DC Converter Mounting: Through Hole
  • Width: 6.15mm
  • Height: 10.15mm
  • Depth: 19.65mm
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: UL
  • Approvals & Standards: UL
  • Efficiency: 87%
  • Isolation Voltage: 1kV
  • No. of Outputs: 2Outputs
  • Power Rating: 1W
  • Supply Voltage: 24V
