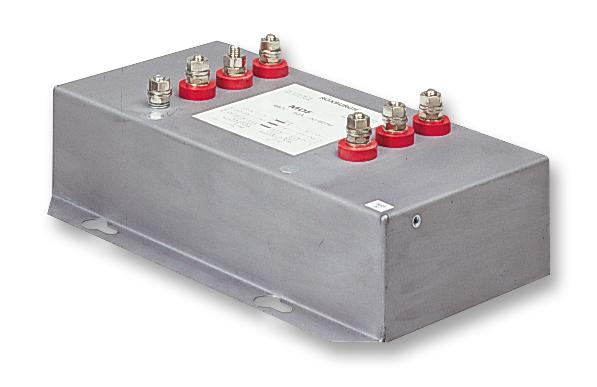

ROXBURGH EMC - MDF50 - Power Line Filter, Installation, General Purpose, 250 VAC, 50 A, Single Phase, 1 Stage
- Current Rating: 50A
- Voltage Rating: 250V
- Filter Type: EMI, RFI
- Filter Terminals: Stud
- Inductance Min: 1.1mH
- Capacitance: 2.2µF
- Leakage Current Max: 200mA
- Product Range: -
- SVHC: No SVHC (15-Jan-2019)
- Approval Bodies: EN, VDE
- Bleed Resistor Resistance: 2mohm
- External Depth: 174mm
- External Length / Height: 55mm
- External Width: 120mm
- No. of Phases: Single Phase
- Operating Temperature Max: 85°C
- Operating Temperature Min: -25°C
- Standard: IEC950
- Supply Frequency Max: 60Hz
- Supply Frequency Min: 50Hz
- Test Voltage: 2kV
- Voltage Rating VAC: 250V
