MCTJ-416-V Switch, SPST, 0.05A, 12VDC, SMD multicomp Pro

MULTICOMP PROUGS :MCTJ-416-V Code de commande:1316994

Prix:
Prix ​​promotionnel€0,54

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (5527 unité)

Documents et téléchargements

description

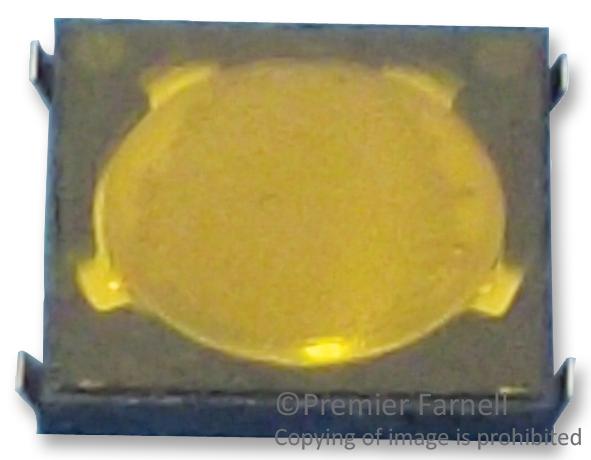

MULTICOMP PRO - MCTJ-416-V - Tactile Switch, MCTJ-4, Top Actuated, Surface Mount, Round Button, 160 gf, 50mA at 12VDC

  • Product Range: MCTJ-4 Series
  • Actuator Orientation: Top Actuated
  • Switch Mounting: SMD
  • Actuator Style: Round Button
  • Actuating Force: 160gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 4.4mm x 4.4mm
  • IP Rating: -
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Top
  • Contact Configuration: SPST
  • Contact Current Max: 50mA
  • Contact Resistance Max: 100mohm
  • Contact Voltage DC Nom: 12V
  • Insulation Resistance: 100Mohm
  • Insulation Resistance Voltage: 500VDC
  • No. of Electrical Operations: 200000
  • Operating Force: 160gf
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -20°C
  • Switch Terminals: Solder
