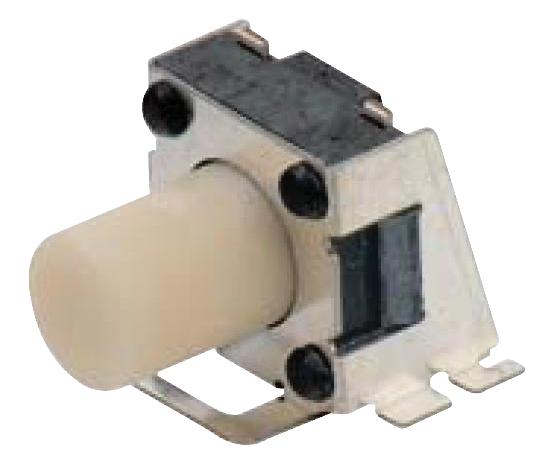

MCTA3-3R2-V Switch, Tactile, R/A, 2.3mm multicomp Pro

MULTICOMP PROUGS :MCTA3-3R2-V Code de commande:1607140

Prix:
Prix ​​promotionnel€2,37

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (554 unité)

Documents et téléchargements

description

WEIDMULLER - 1607140000 - Terminal Block, Header, 3.5 mm, 12 Ways, 10 A, 300 V, Through Hole Right Angle

  • Product Range: MCTA3 Series
  • Actuator Orientation: Side Actuated
  • Switch Mounting: SMD
  • Actuator Style: Round Button
  • Actuating Force: 185gf
  • Contact Rating: 50mA at 12VDC
  • Switch Dimensions (L x W): 6mm x 6mm
  • IP Rating: IP57
  • Illumination: Non Illuminated
  • SVHC: No SVHC (15-Jan-2019)
  • Actuation Type: Side
  • Actuator / Cap Colour: Red
  • Body Depth: 4.37mm
  • Colour: Red
  • Contact Configuration: SPST
  • Contact Current DC Max: 1.5mA
  • Contact Current Max: 1.5mA
  • Contact Voltage DC Max: 5VDC
  • Contact Voltage DC Nom: 5V
  • External Length / Height: 6.5mm
  • External Width: 6.31mm
  • Insulation Resistance Voltage: 500VDC
  • No. of Electrical Operations: 200000
  • Operating Force: 185gf
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -25°C
  • Shaft Diameter: 3.55mm
  • Switch Terminals: Solder
  • Travel: 0.15mm
