MCRR25223X7RK0100 Cap, 0.022µF, 100V, X7R multicomp

MULTICOMPUGS :MCRR25223X7RK0100 Code de commande:1216426

Prix:
Prix ​​promotionnel€1,27

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2195 unité)

Documents et téléchargements

description

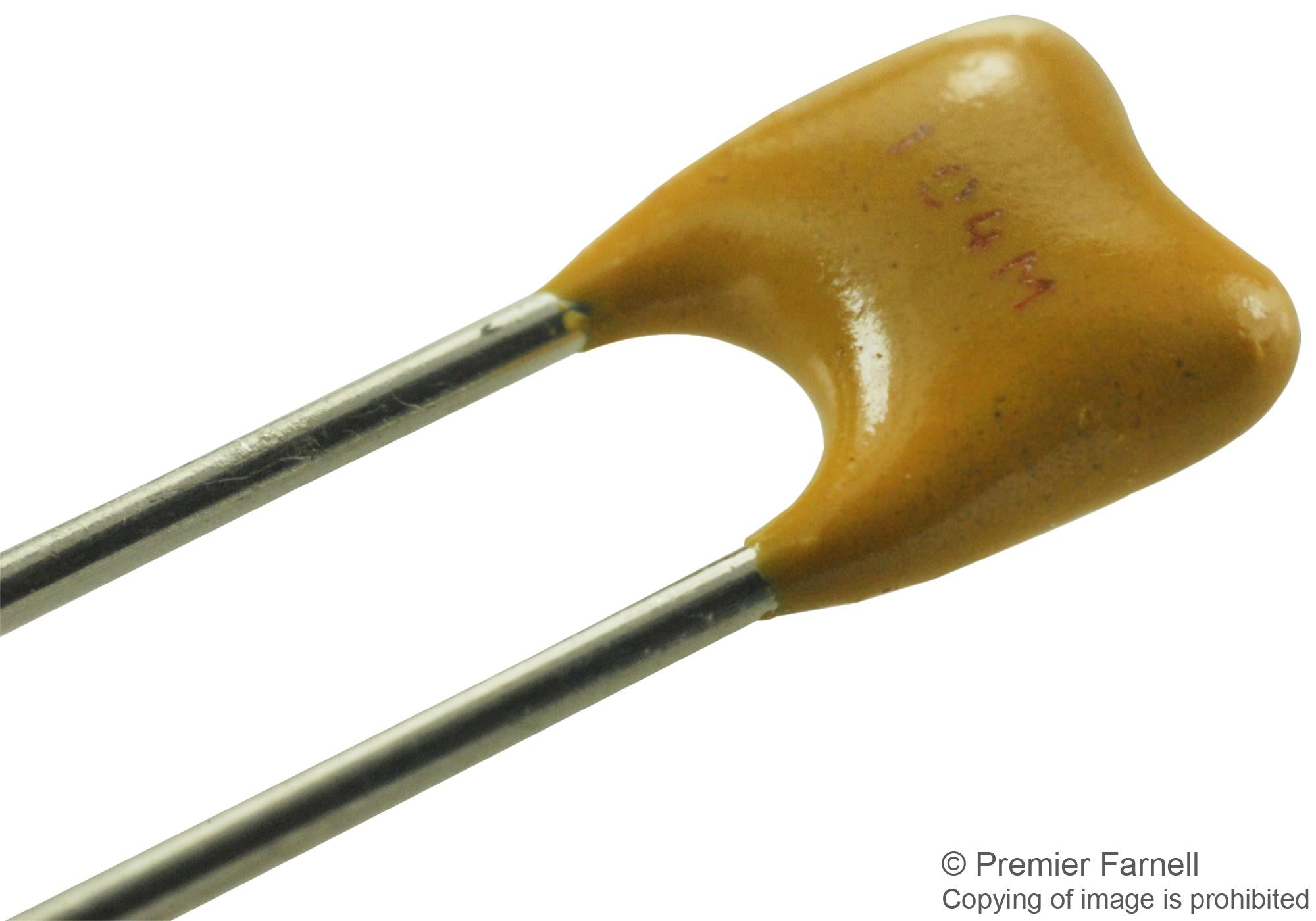

MULTICOMP - MCRR25223X7RK0100 - Multilayer Ceramic Capacitor, 22000 pF, 100 V, -5%, +10%, PC Pin, X7R, 2.54 mm

  • Capacitance: 22000pF
  • Voltage Rating: 100V
  • Product Range: MCRR Series
  • Capacitance Tolerance: +10%, -5%
  • Capacitor Terminals: Radial Leaded
  • Dielectric Characteristic: X7R
  • Lead Spacing: 2.54mm
  • Operating Temperature Min: -55°C
  • Operating Temperature Max: 125°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (07-Jul-2017)
  • Capacitance Tolerance ±: +10%, -5%
  • External Depth: 2.54mm
  • External Length / Height: 3.81mm
  • External Width: 3.81mm
  • Height: 3.81mm
  • Lead Diameter: 0.508mm
  • Lead Length: 25.4mm
  • No. of Pins: 2Pins
  • Operating Temperature Range: -55°C to +125°C
  • Temperature Coeff. +: 20ppm/°C
  • Temperature Coefficient: +20ppm/°C
  • Tolerance +: 10%
  • Tolerance -: 5%
  • Voltage Rating V DC: 100V
