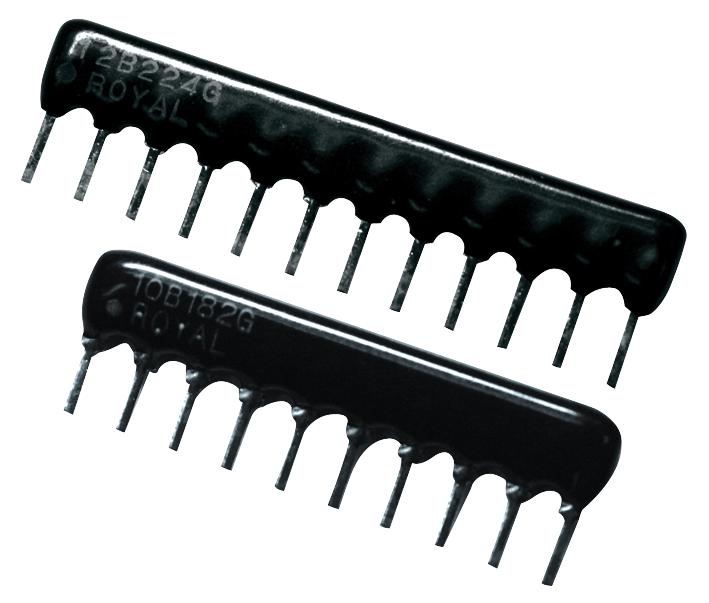

MULTICOMP PRO - MCRNLB08G0222B0E - Fixed Network Resistor, 2.2 kohm, Isolated, 4 Resistors, SIP, PC Pin, ± 2%
- Resistance: 2.2kohm
- Product Range: -
- No. of Elements: 4Elements
- Network Circuit Type: Isolated
- Resistor Case Style: SIP
- No. of Pins: 8Pins
- Voltage Rating: 100V
- Power Rating per Element: -
- Resistance Tolerance: ± 2%
- Temperature Coefficient: ± 200ppm/°C
- Automotive Qualification Standard: -
- SVHC: No SVHC (15-Jan-2019)
- External Depth: 2.5mm
- External Length / Height: 20.4mm
- External Width: 5.08mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Power Rating: 125mW
- Resistance R1: 2.2kohm
- Resistor Mounting: Through Hole
- Resistor Terminals: Radial Leaded
