MCRNLA09G0102B0E Resistor, Network, 1K, 2%, 1/8W multicomp Pro

MULTICOMP PROUGS :MCRNLA09G0102B0E Code de commande:1973138

Prix:
Prix ​​promotionnel€0,92

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

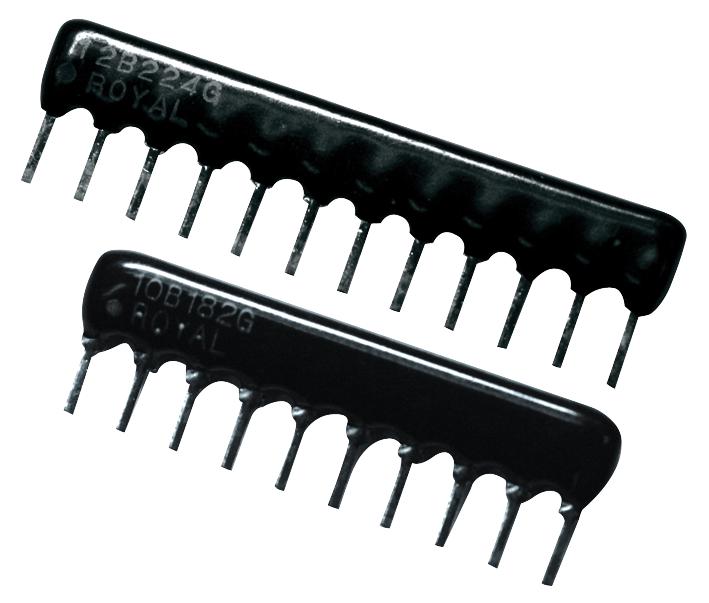

MULTICOMP PRO - MCRNLA09G0102B0E - Fixed Network Resistor, 1 kohm, Bussed, 8 Resistors, SIP, PC Pin, ± 2%

  • Resistance: 1kohm
  • Product Range: -
  • No. of Elements: 8Elements
  • Network Circuit Type: Bussed
  • Resistor Case Style: SIP
  • No. of Pins: 9Pins
  • Voltage Rating: 100V
  • Power Rating per Element: -
  • Resistance Tolerance: ± 2%
  • Temperature Coefficient: ± 200ppm/°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • External Depth: 2.5mm
  • External Length / Height: 22.9mm
  • External Width: 5.08mm
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Operating Temperature Range: -55°C to +125°C
  • Power Rating: 200mW
  • Resistance R1: 1kohm
  • Resistor Mounting: Through Hole
  • Resistor Terminals: Radial Leaded
