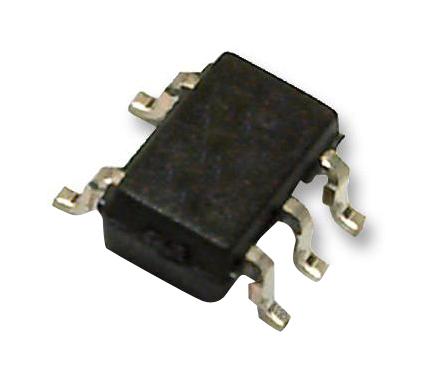

MICROCHIP - MCP9701AT-E/LT - Temperature Sensor IC, Voltage, ± 1°C, -40 °C, +125 °C, SC-70, 5 Pins
- IC Output Type: Voltage
- Sensing Accuracy Range: ± 1°C
- Sensing Temperature Min: -40°C
- Sensing Temperature Max: +125°C
- Sensor Case Style: SC-70
- No. of Pins: 5Pins
- Supply Voltage Min: 3.1V
- Supply Voltage Max: 5.5V
- Product Range: -
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (27-Jun-2018)
- Base Number: 9701
- Operating Temperature Max: 125°C
- Operating Temperature Range: -40°C to +125°C
- Output Current: 30mA
- Output Voltage: 400mV
- Output Voltage per °C: 19.5mV/°C
- Resolution: 1°C
- Sensor / Transducer Type: Temperature
- Supply Current: 6µA
- Supply Voltage Range: 3.1V to 5.5V
- Temperature Sensing Range: -40°C to +125°C
- Termination Type: Surface Mount Device
