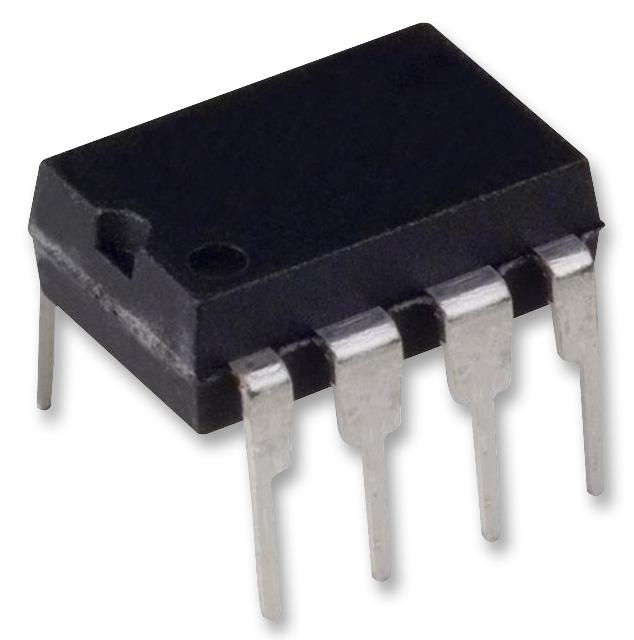

MICROCHIP - MCP6022-I/P - Operational Amplifier, Dual, 2 Amplifier, 10 MHz, 7 V/µs, 2.5V to 5.5V, DIP, 8 Pins
- No. of Amplifiers: 2 Amplifier
- Bandwidth: 10MHz
- Slew Rate: 7V/µs
- Supply Voltage Range: 2.5V to 5.5V
- Amplifier Case Style: DIP
- No. of Pins: 8Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: AEC-Q100
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Amplifer Supply Voltage: 2.5V to 5.5V
- Bandwidth Range Gain: 1dB
- Base Number: 6022
- Current Iqc Max: 1.35mA
- Current Iqc Typ: 1mA
- Gain Bandwidth: 10MHz
- I/O Type: Rail-Rail I/O
- IC Generic Number: 6022
- Input Offset Drift Max: 3µV/°C
- Input Offset Voltage Max: 500µV
- Lead Spacing: 2.54mm
- Logic Function Number: 6022
- No. of Amplifiers: 2Amplifiers
- Op Amp Type: General Purpose
- Operating Temperature Range: -40°C to +85°C
- Operational Amplifier Features: Rail-to-Rail Input/Output
- Output Current + Max: 30mA
- Output Current - Max: 30mA
- Row Pitch: 9.4mm
- Settling Time: 250ns
- Supply Current Max: 2mA
- Supply Voltage + Nom: 5.5V
- Supply Voltage Max: 5.5V
- Supply Voltage Min: 2.7V
