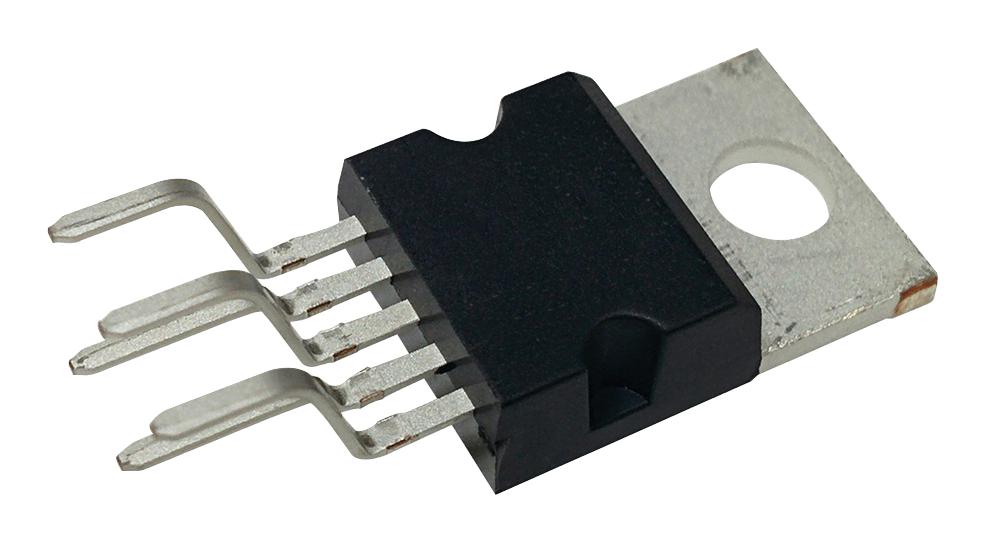

MICROCHIP - MCP1825-3002E/AT - Fixed LDO Voltage Regulator, 2.1V to 6V, 210mV Dropout, 3Vout, 500mAout, TO-220-5
- Output Type: Fixed
- Input Voltage Min: 2.1V
- Input Voltage Max: 6V
- Fixed Output Voltage Nom.: 3V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Output Current: 500mA
- Dropout Voltage Vdo: 210mV
- LDO Regulator Case Style: TO-220
- No. of Pins: 5Pins
- Operating Temperature Min: -40°C
- Operating Temperature Max: 125°C
- Product Range: 3V 500mA LDO Voltage Regulators
- Automotive Qualification Standard: AEC-Q100
- RoHS Phthalates Compliant: Yes
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Accuracy %: 0.5%
- No. of Outputs: 1Outputs
- Operating Temperature Range: -40°C to +125°C
- Output Current Max: 0.5A
- Output Voltage Nom.: 3V
- Primary Input Voltage: 3.35V
- Supply Voltage Max: 6V
- Supply Voltage Min: 2.1V
- Voltage Regulator Type: Fixed
