MCMHR50V105M4X7 Cap, 1µF, 50V, 20% multicomp Pro

MULTICOMP PROUGS :MCMHR50V105M4X7 Code de commande:1871015

Prix:
Prix ​​promotionnel€0,18

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (3286 unité)

Documenten en downloads

description

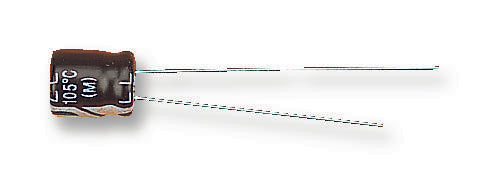

MULTICOMP PRO - MCMHR50V105M4X7 - Electrolytic Capacitor, 1 µF, 50 V, ± 20%, Radial Leaded, 1000 hours @ 105°C, Polar

  • Capacitance: 1µF
  • Voltage Rating: 50V
  • Product Range: MCMHR Series
  • Capacitance Tolerance: ± 20%
  • Capacitor Terminals: Radial Leaded
  • Diameter: 4mm
  • Lead Spacing: 1.5mm
  • Height: 7mm
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 105°C
  • Lifetime @ Temperature: 1000 hours @ 105°C
  • ESR: -
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jan-2019)
  • Body Diameter: 4mm
  • Capacitance Tolerance ±: ± 20%
  • External Length / Height: 7mm
  • Frequency Tolerance: 120Hz
  • Lead Diameter: 0.45mm
  • Leakage Current: 3µA
  • No. of Pins: 2Pins
  • Operating Temperature Range: -40°C to +105°C
  • Operating life Time: 1000h
  • Outer Diameter: 4mm
  • Ripple Current AC: 10mA
  • Ripple Current Frequency: 120Hz
  • Ripple Current Temperature: 105°C
  • Tolerance +: 20%
  • Tolerance Temperature: 20°C
  • Voltage Rating V DC: 50V
