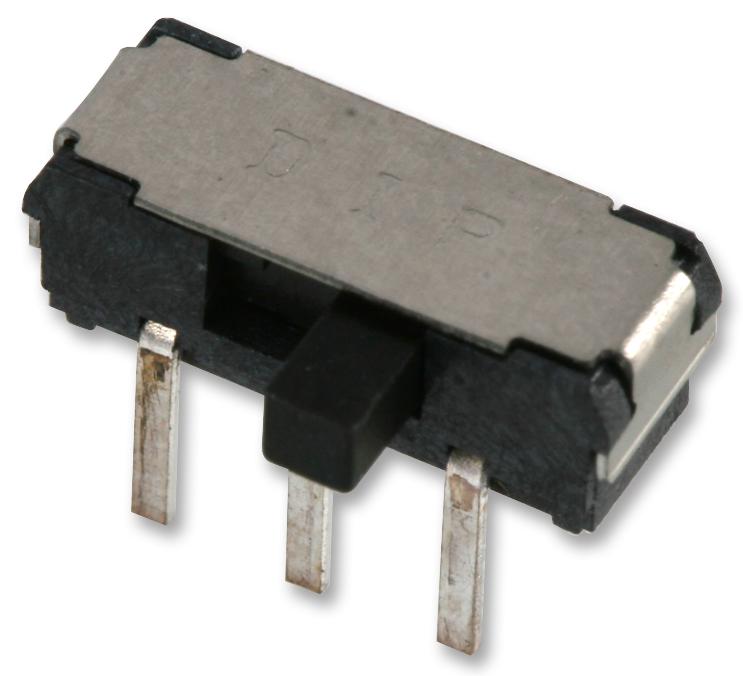

MCLSS22 Switch, DPDT, 0.1A, 12VDC, THT multicomp Pro

MULTICOMP PRO - MCLSS22 - Slide Switch, DPDT, On-On, Through Hole, MCLSS22, 100 mA

• Contact Configuration: DPDT
• Switch Operation: On-On
• Switch Mounting: Through Hole
• Product Range: MCLSS22 Series
• Contact Current Max: 100mA
• Contact Voltage AC Max: -
• Contact Voltage DC Max: 12V
• Orientation: Horizontal
• SVHC: No SVHC (15-Jan-2019)
• Actuation Type: Raised
• Actuator Type: Side
• Contact Current DC Max: 100mA
• Contact Resistance: 100mohm
• Dielectric Strength VDC: 500VAC
• External Depth: 3.5mm
• External Length / Height: 3.5mm
• External Width: 9.5mm
• Insulation Resistance: 100Mohm
• Insulation Resistance Voltage: 500VDC
• Lead Spacing: 2.5mm
• No. of Electrical Operations: 10000
• No. of Mechanical Operations: 10000
• Operating Force: 1.96N
• Operating Temperature Max: 60°C
• Operating Temperature Min: -10°C
• Pin Length: 3mm
• Row Pitch: 3.5mm
• Switching Current DC Max: 25mA
