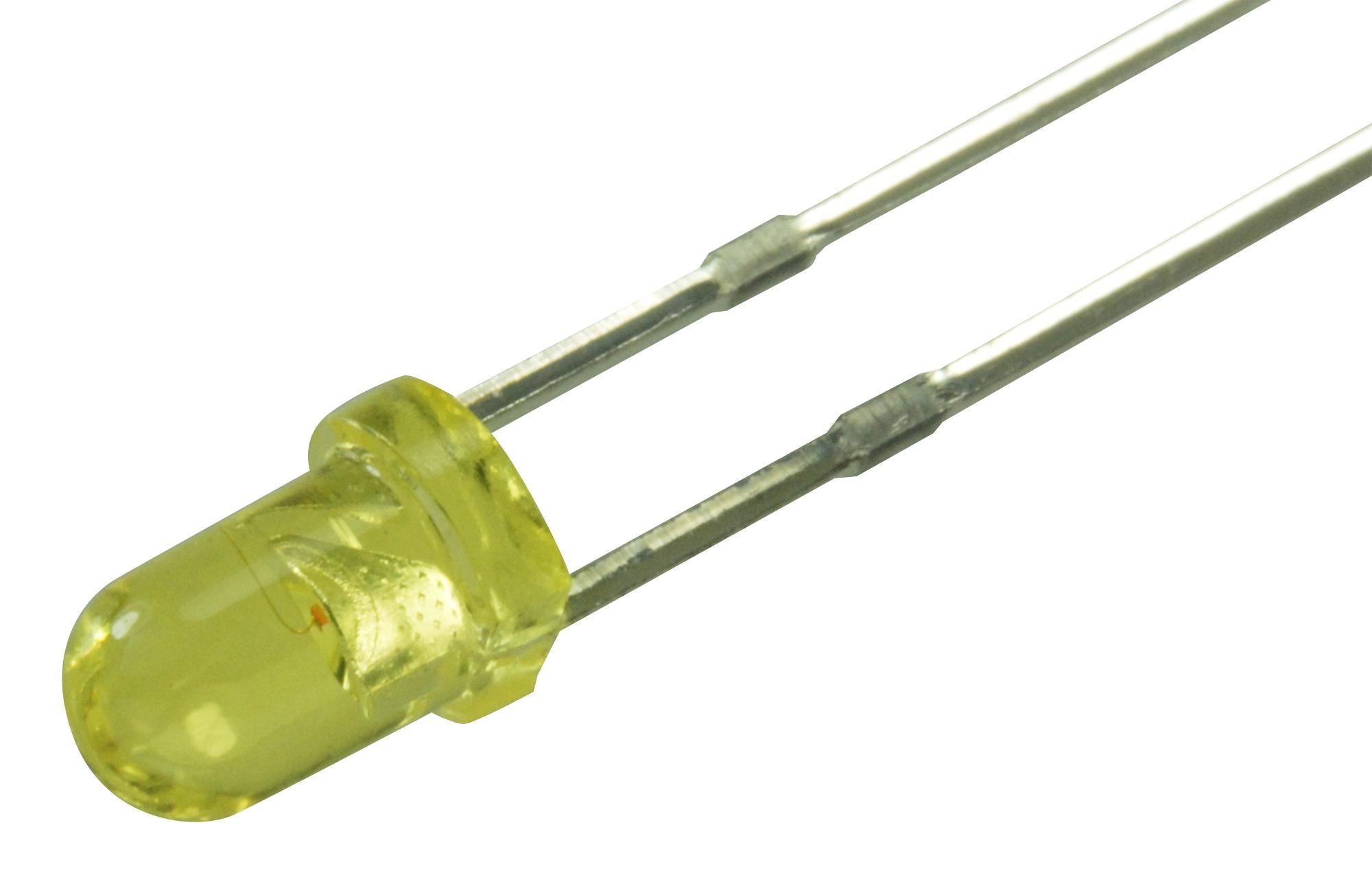

MULTICOMP PRO - MCL034YT - LED, Yellow, Through Hole, T-1 (3mm), 20 mA, 2.1 V, 590 nm
- LED Colour: Yellow
- LED Mounting: Through Hole
- LED Case Size: T-1 (3mm)
- Forward Current If: 20mA
- Forward Voltage: 2.1V
- Wavelength Typ: 590nm
- Luminous Intensity: 32mcd
- Viewing Angle: 36°
- Lens Shape: Round
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (15-Jan-2019)
- Bulb Size: T-1 (3mm)
- Current Rating: 20mA
- Dominant Wavelength: 590nm
- Dominant Wavelength Typ: 590nm
- Forward Current If Max: 20mA
- Forward Voltage VF Max: 2.6V
- LED / Lamp Size: 3mm / T-1
- LED Type: Standard
- Luminous Intensity Max: 50mcd
- Luminous Intensity Min: 17mcd
- Luminous Intensity Typ: 32mcd
- No. of Pins: 2Pins
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Peak Forward Current: 100mA
- Peak Wavelength: 587nm
- Reverse Protection Voltage: 5V
- Storage Temperature Max: +85°C
- Storage Temperature Min: -40°C
- Voltage Vf Min: 1.7V
- Voltage Vf Typ: 2.1V
