MCHRS3T-S-DC12V-C Relay, 250VAC, 30Vdc, 5A multicomp Pro

MULTICOMP PROUGS :MCHRS3T-S-DC12V-C Code de commande:1885588

Prix:
Prix ​​promotionnel€4,86

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1161 unité)

Documents et téléchargements

description

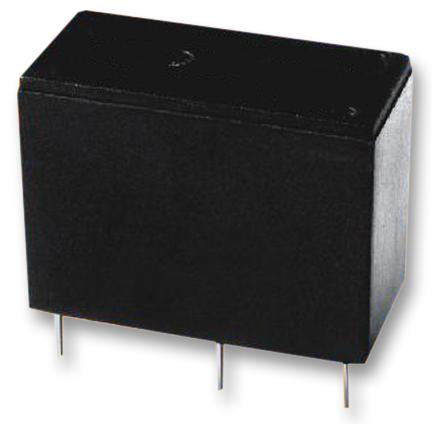

MULTICOMP PRO - MCHRS3T-S-DC12V-C - General Purpose Relay, HRS3T Series, Power, 12 VDC, 5 A

  • Contact Configuration: SPDT
  • Coil Voltage: 12VDC
  • Contact Current: 5A
  • Product Range: HRS3T Series
  • Relay Mounting: Through Hole
  • Coil Type: -
  • Contact Voltage VAC: 250VAC
  • Relay Terminals: Solder
  • Contact Voltage VDC: 30VDC
  • Contact Material: Silver Alloy
  • Coil Resistance: 320ohm
  • SVHC: No SVHC (07-Jul-2017)
  • Coil Voltage VDC Nom: 12V
  • Contact Current Max: 5A
  • Contact Voltage AC Nom: 250V
  • Contact Voltage DC Nom: 30V
  • External Depth: 10.4mm
  • External Height: 16mm
  • External Width: 20.9mm
  • Nom Operating Power: 450mW
  • Relay Type: Power
