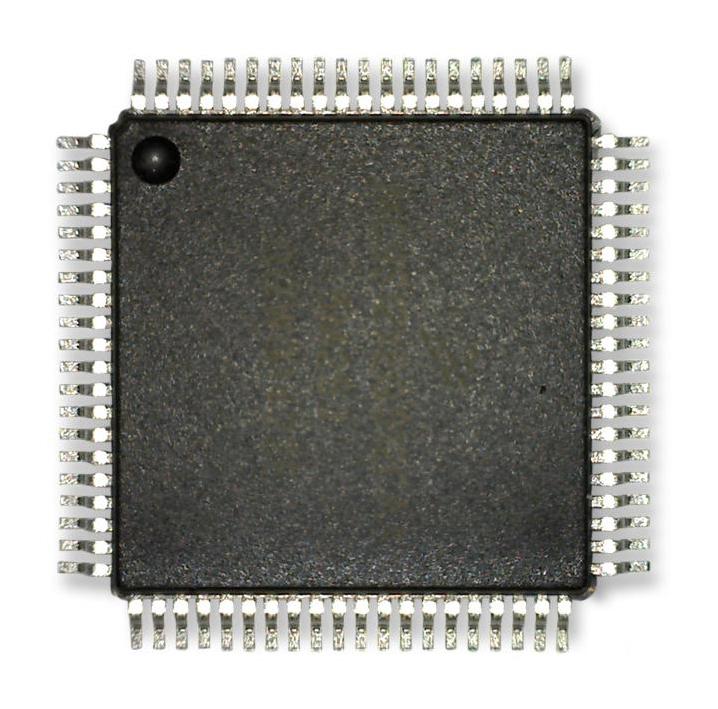

NXP - MCHC912B32CFUE8 - MCU-Application Specific 16 bit, 68HC12, 8 MHz, 1 KB RAM/32 KB Program, 4.5 V to 5.5 V in, QFP-80
- Product Range: HC12 Family 68HC912B32 Series Microcontrollers
- Architecture: HC12
- MCU Core Size: 16bit
- Program Memory Size: 32KB
- RAM Memory Size: 1KB
- CPU Speed: 8MHz
- No. of I/O's: 63I/O's
- MCU Case Style: QFP
- No. of Pins: 80Pins
- Embedded Interface Type: SCI, SPI
- MCU Applications: Automotive
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- MCU Family: HC12
- MCU Series: 68HC912B32
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: 68HC12
- EEPROM Memory Size: 768Byte
- Flash Memory Size: 32KB
- MPU Core Size: 16bit
- No. of ADC Inputs: 8
- No. of PWM Channels: 4
- No. of Timers: 1
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, PWM, Timer
- Program Memory Size: 32KB
- Supply Voltage Range: 4.5V to 5.5V
- Termination Type: Surface Mount Device
