NXP - MCF52259CVN80 - ColdFire Microcontroller, CAN Controller, Coldfire V2 Family MCF5225x Series Microcontrollers
- Product Range: Coldfire V2 Family MCF5225x Series Microcontrollers
- Architecture: Coldfire v2
- No. of Bits: 32bit
- CPU Speed: 80MHz
- Program Memory Size: 512KB
- RAM Memory Size: 64KB
- No. of Pins: 144Pins

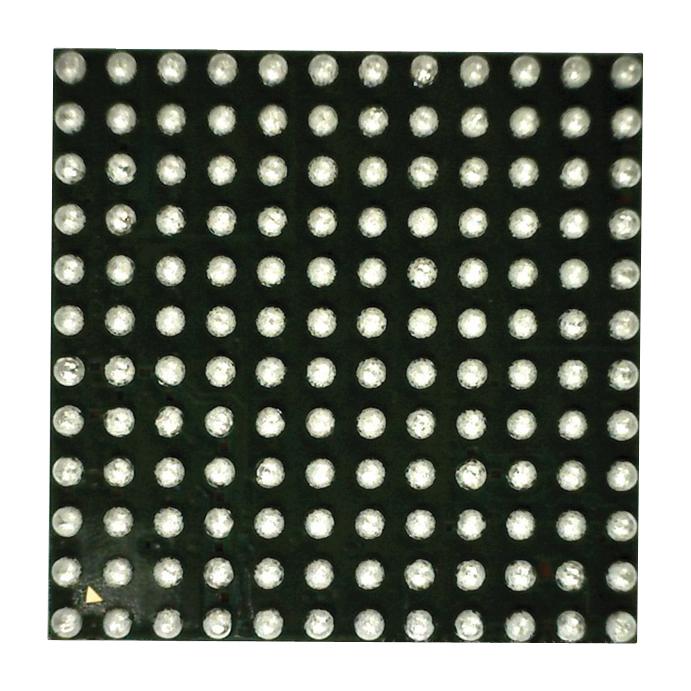

- MCU Case Style: MAPBGA
- No. of I/O's: 96I/O's
- Embedded Interface Type: CAN, ENET, I2C, QSPI, UART, USB
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.6V
- MCU Family: ColdFire V2
- MCU Series: MCF5225x
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Base Number: ColdFire/68K
- Clock Frequency: 80MHz
- Controller Family/Series: ColdFire
- Flash Memory Size: 512KB
- MPU Core Size: 32bit
- No. of ADC Inputs: 8
- No. of PWM Channels: 12
- No. of Timers: 2
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External, Internal
- Peripherals: ADC, DMA, LCD Controller, PWM, RTC
- Program Memory Size: 512KB
- Supply Voltage Range: 3V to 3.6V
- Termination Type: Surface Mount Device
