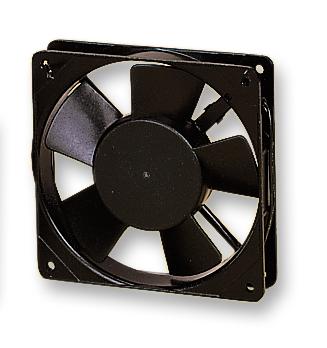

MCDP201AT/2122HBL.GN Fan, 119mm, 230VAC multicomp

MULTICOMPUGS :MCDP201AT/2122HBL.GN Code de commande:9606580

Prix:
Prix ​​promotionnel€17,24

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1794 unité)

Documents et téléchargements

description

MULTICOMP - MCDP201AT/2122HBL.GN - AC Axial Fan, 230V, Square, 119 mm, 25 mm, Precision Ball Bearing, 78 CFM

  • Supply Voltage: 230V
  • Current Type: AC
  • Fan Frame Size: 119mm
  • External Depth: 25mm
  • Noise Rating: 46dBA
  • Flow Rate - Imperial: 78cu.ft/min
  • Flow Rate - Metric: 133m³/h
  • Bearing Type: Precision Ball
  • Power Connection Type: 2 Lead Wires
  • Current Rating: 90mA
  • Product Range: Slimline Series
  • Power Rating: -
  • IP Rating: -
  • SVHC: No SVHC (15-Jan-2018)
  • Approval Bodies: CSA, UL
  • External Height: 119mm
  • External Width: 119mm
  • Fixing Centres: 105mm
  • Fixing Hole Diameter: 4.3mm
  • Flammability Rating: UL94V-0
  • Frame Dimensions: 119mm x 119mm x 25mm
  • Operating Temperature Max: 70°C
  • Operating Temperature Min: -10°C
  • Operating life Time: 30000h
  • Panel Cutout Diameter: 116mm
  • Power Consumption: 18W
  • Speed Range Max: 2300rpm
  • Type: Slimline
