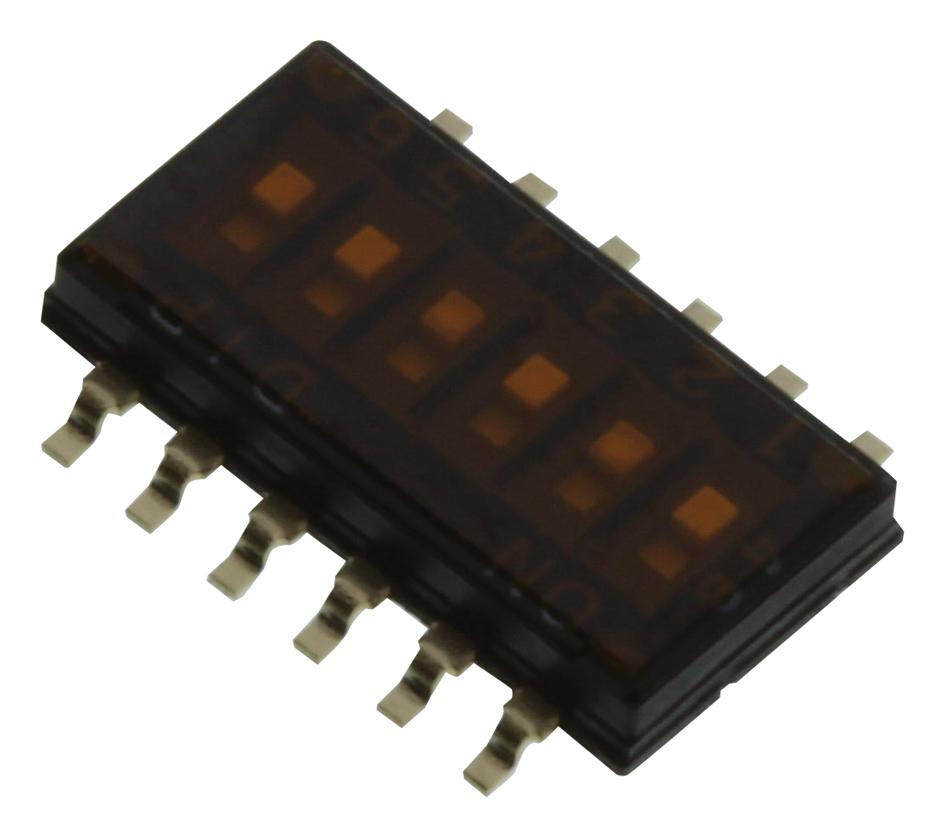

MULTICOMP PRO - MCDHN-06F-T-V - DIP Switch, Slide Actuator, 6 Circuits, Half Pitch, SPST, 24 VDC, 25 mA, SMD
- No. of Circuits: 6Circuits
- Switch Actuator Style: Flush Slide
- Switch Mounting: SMD
- Contact Configuration: SPST
- Contact Voltage DC Max: 24VDC
- Contact Current DC Max: 25mA
- Product Range: MCDHN Series
- Switch Type: DIP Sealed
- SVHC: No SVHC (15-Jan-2019)
- Contact Resistance: 100mohm
- Dielectric Strength VDC: 300VAC
- External Diameter: 4.5mm
- External Length / Height: 1.5mm
- External Width: 8.85mm
- Flammability Rating: UL 94V-0
- Insulation Resistance: 100Mohm
- Insulation Resistance Voltage: 500VDC
- Lead Spacing: 1.27mm
- Material: High Temperature Thermoplastic
- No. of Electrical Operations: 1000
- No. of Mechanical Operations: 1000
- No. of Positions: 6Ways
- Operating Force: 4.9N
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Pin Configuration: DIP
- Pitch Spacing: 1.27mm
- Row Pitch: 7.4mm
- Storage Temperature Max: 85°C
- Storage Temperature Min: -40°C
- Switching Current DC Max: 25mA
- Travel: 0.6mm
