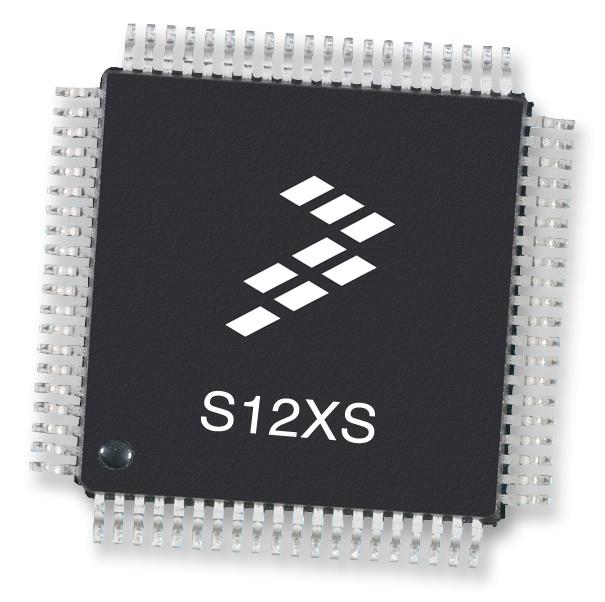

NXP - MC9S12XS128MAA - Microcontroller, HCS12X Family S12XS Series Microcontrollers, HCS12X, 16bit, 40 MHz, 128 KB, 8 KB
- Product Range: HCS12X Family S12XS Series Microcontrollers
- Architecture: HCS12X
- No. of Bits: 16bit
- CPU Speed: 40MHz
- Program Memory Size: 128KB
- RAM Memory Size: 8KB
- No. of Pins: 80Pins
- MCU Case Style: QFP
- No. of I/O's: 59I/O's
- Embedded Interface Type: CAN, SCI, SPI
- Supply Voltage Min: 3.13V
- Supply Voltage Max: 5.5V
- MCU Family: HCS12X
- MCU Series: S12XS
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Automotive Qualification Standard: AEC-Q100
- Controller Family/Series: HCS12/S12X
- EEPROM Memory Size: 8KB
- MCU Applications: Automotive
- MCU Core Size: 16bit
- MPU Core Size: 16bit
- No. of PWM Channels: 8
- No. of Timers: 1
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Oscillator Type: External
- Peripherals: ADC, LVD, POR, TIM
- Program Memory Size: 128KB
- Supply Voltage Range: 3.13V to 5.5V
