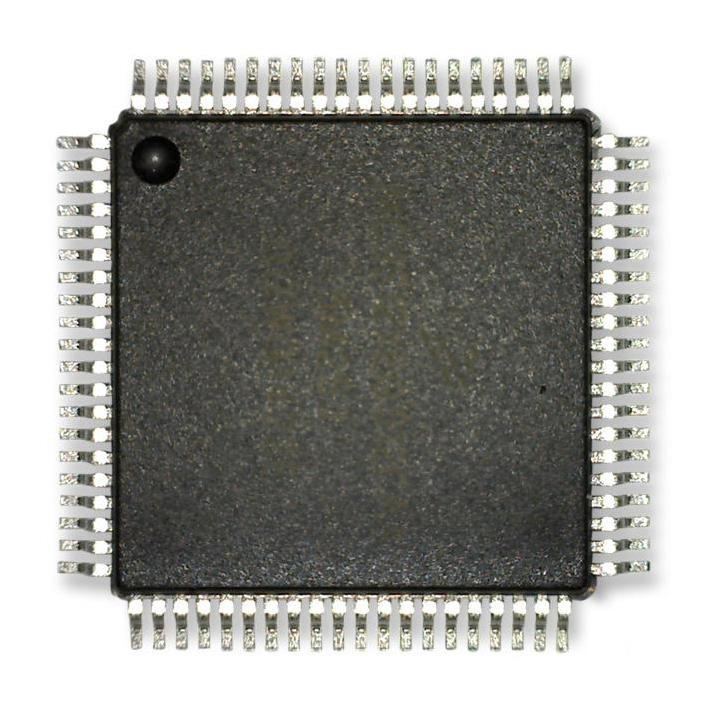

NXP - MC9S12C32CFUE16 - Microcontroller, HCS12 Family S12C Series Microcontrollers, HCS12, 16bit, 16 MHz, 32 KB, 2 KB
- Product Range: HCS12 Family S12C Series Microcontrollers
- Architecture: HCS12
- No. of Bits: 16bit
- CPU Speed: 16MHz
- Program Memory Size: 32KB
- RAM Memory Size: 2KB
- No. of Pins: 80Pins
- MCU Case Style: QFP
- No. of I/O's: 60I/O's
- Embedded Interface Type: CAN, SCI, SPI
- Supply Voltage Min: 2.35V
- Supply Voltage Max: 2.75V
- MCU Family: HCS12
- MCU Series: S12C
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Clock Frequency: 16MHz
- Controller Family/Series: HCS12/S12X
- EEPROM Memory Size: 128KB
- Flash Memory Size: 32KB
- IC Generic Number: 9S12
- Logic Function Number: 16
- MCU Applications: Automotive
- MCU Core Size: 16bit
- MPU Core Size: 16bit
- Memory Type: Flash
- Microprocessor/Controller Features: 8-channel 10-bit ADC, PWM module, SPI & SCI Serial interfaces, Internal 2.5V regulator
- No. of ADC Inputs: 8
- No. of PWM Channels: 6
- No. of Timers: 1
- Operating Temperature Max: 125°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +125°C
- Oscillator Type: External
