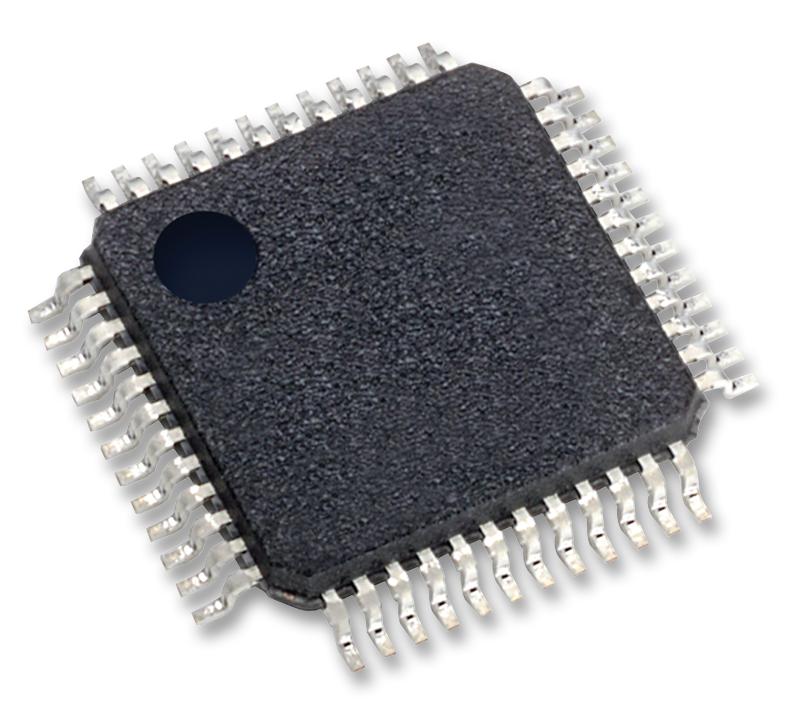

NXP - MC9S12C32CFAE25 - Microcontroller, HCS12 Family S12C Series Microcontrollers, HCS12, 16bit, 25 MHz, 32 KB, 2 KB
- Product Range: HCS12 Family S12C Series Microcontrollers
- Architecture: HCS12
- No. of Bits: 16bit
- CPU Speed: 25MHz
- Program Memory Size: 32KB
- RAM Memory Size: 2KB
- No. of Pins: 48Pins
- MCU Case Style: QFP
- No. of I/O's: 31I/O's
- Embedded Interface Type: CAN, SCI, SPI
- Supply Voltage Min: 2.35V
- Supply Voltage Max: 2.75V
- MCU Family: HCS12
- MCU Series: S12C
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: HCS12/S12X
- EEPROM Memory Size: 32KB
- Logic Function Number: 12C32
- MCU Applications: Automotive
- MCU Core Size: 16bit
- MPU Core Size: 16bit
- Memory Type: Flash
- Microprocessor/Controller Features: CAN 2.0 A/B, SCI, SPI
- No. of ADC Inputs: 8
- No. of PWM Channels: 6
- No. of Timers: 1
- Number of bits In Timer: 8
- Number of bits in ADC: 10
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Oscillator Type: External
- Peripherals: ADC, PWM, Timer
- Program Memory Size: 32KB
