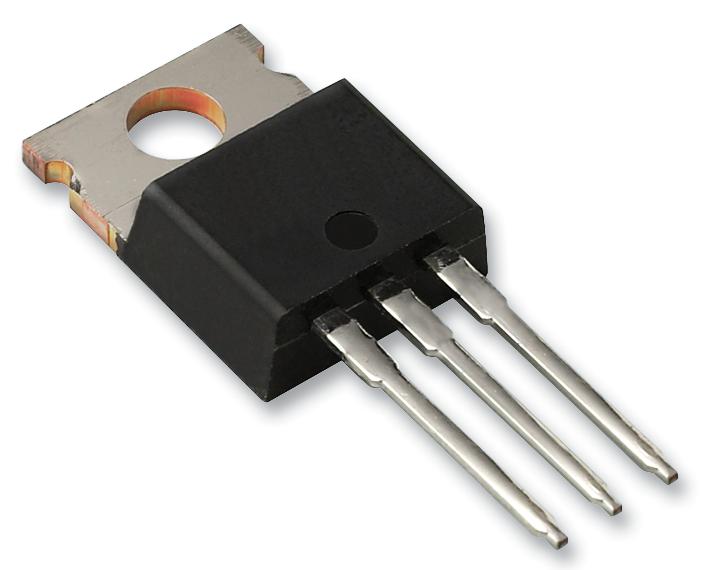

ONSEMI - MC78M05CTG - Linear Voltage Regulator, 7805, Fixed, Positive, 10V To 35V In, 5V And 0.5A Out, TO-220-3
- Fixed Output Voltage Nom.: 5V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Input Voltage Min: 10V
- Input Voltage Max: 35V
- Product Range: 7805 Voltage Regulators
- Output Current: 500mA
- Output Type: Fixed
- Linear Regulator Case Style: TO-220
- No. of Pins: 3Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: Lead (27-Jun-2018)
- Accuracy %: 4%
- Base Number: 78
- Device Marking: MC78M05CT
- Dropout Voltage Vdo: 2V
- IC Generic Number: 78M05
- LDO Regulator Case Style: TO-220
- No. of Outputs: 1Outputs
- Operating Temperature Range: 0°C to +125°C
- Operating Voltage Tolerance +: 4%
- Output Current Max: 0.5A
- Output Voltage Nom.: 5V
- Primary Input Voltage: 10V
- Supply Voltage Max: 20V
- Supply Voltage Min: 7V
- Voltage Regulator Type: Positive Fixed
