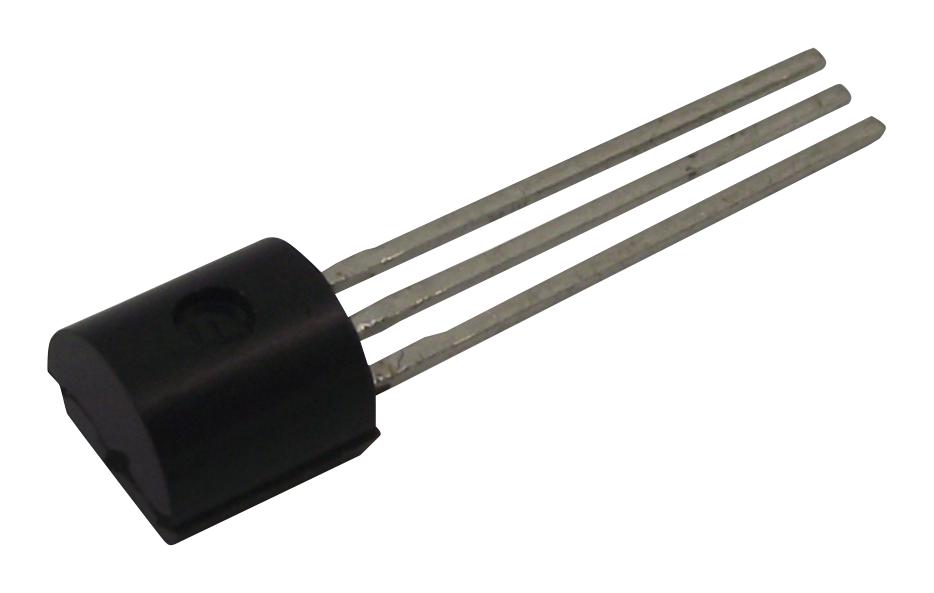

ONSEMI - MC78L12ACPG - Linear Voltage Regulator, 7812, Fixed, Positive, 13.7V To 35V In, 12V And 0.1A Out, TO-92-3
- Fixed Output Voltage Nom.: 12V
- Adjustable Output Voltage Min: -
- Adjustable Output Voltage Max: -
- Input Voltage Min: 19V
- Input Voltage Max: 35V
- Product Range: 7812 Voltage Regulators
- Output Current: 100mA
- Output Type: Fixed
- Linear Regulator Case Style: TO-92
- No. of Pins: 3Pins
- Operating Temperature Min: 0°C
- Operating Temperature Max: 125°C
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Accuracy %: 5%
- Base Number: 78
- Device Marking: MC78L12ACP
- IC Generic Number: 78L12
- No. of Outputs: 1Outputs
- Operating Temperature Range: 0°C to +150°C
- Operating Voltage Tolerance +: 5%
- Output Current Max: 0.1A
- Output Voltage Max: 12V
- Output Voltage Nom.: 12V
- Primary Input Voltage: 19V
- Supply Voltage Max: 27V
- Supply Voltage Min: 14.5V
- Voltage Regulator Type: Positive Fixed
