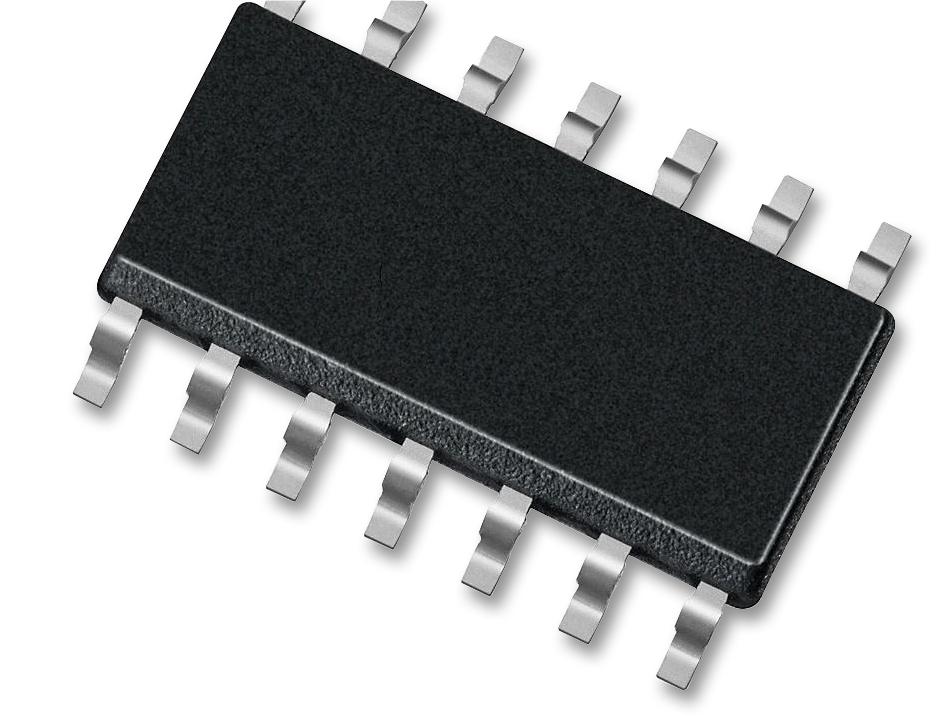

ONSEMI - MC74ACT132DG - Logic IC, NAND Gate, Quad, 2 Inputs, 14 Pins, SOIC, 74ACT132
- Logic Family / Base Number: 74ACT132
- Logic Type: NAND Schmitt Trigger
- Output Current: 24mA
- No. of Inputs: 2
- Supply Voltage Min: 4.5V
- Supply Voltage Max: 5.5V
- Logic Case Style: SOIC
- No. of Pins: 14Pins
- Logic IC Family: 74ACT
- Logic IC Base Number: 74132
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: -
- SVHC: No SVHC (27-Jun-2018)
- Logic Function Number: 74132
- Logic IC Base Number: 74132
- Logic IC Function: Quad 2-Input NAND Schmitt Trigger
- Operating Temperature Range: -40°C to +85°C
- Supply Voltage Range: 4.5V to 5.5V
- Termination Type: Surface Mount Device
