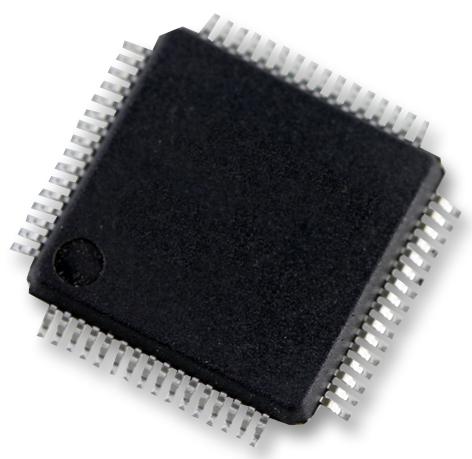

NXP - MC56F8323VFBE - Digital Signal Controller, MC56F83xx, 60 MHz, 32 KB, 27 I/O's, CAN, SCI, SPI, 2.5 V
- Product Range: MC56F83xx Series
- Core Frequency: 60MHz
- Flash Memory Size: 32KB
- No. of I/O's: 27I/O's
- Embedded Interface Type: CAN, SCI, SPI
- Core Supply Voltage: 2.5V
- DSC Case Style: LQFP
- No. of Pins: 64Pins
- Supply Voltage Min: 3V
- Supply Voltage Max: 3.6V
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Automotive Qualification Standard: -
- MSL: MSL 3 - 168 hours
- SVHC: No SVHC (15-Jan-2019)
- Controller Family/Series: MC56F
- EEPROM Memory Size: 8KB
- IC Generic Number: 56F8323
- Logic Function Number: 8323
- MPU Core Size: 16bit
- Memory Type: Flash
- Microprocessor/Controller Features: Two 4-channel 12-bit ADCs, Up to two SPIs, Up to two SCIs, Temperature Sensor, FlexCAN module, 6-channel PWM module
- No. of ADC Inputs: 8
- No. of Bits: 16bit
- No. of PWM Channels: 6
- No. of Timers: 2
- Operating Temperature Range: -40°C to +105°C
- Program Memory Size: 48KB
- Qualified Segment: COMMERCIAL, INDUSTRIAL
- RAM Memory Size: 8KB
- Supply Voltage Range: 3V to 3.6V
