MC32596 USB, 2.0 Type B, Receptacle, Th multicomp Pro

MULTICOMP PROUGS :MC32596 Code de commande:1696537

Prix:
Prix ​​promotionnel€1,02

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (16424 unité)

Documents et téléchargements

description

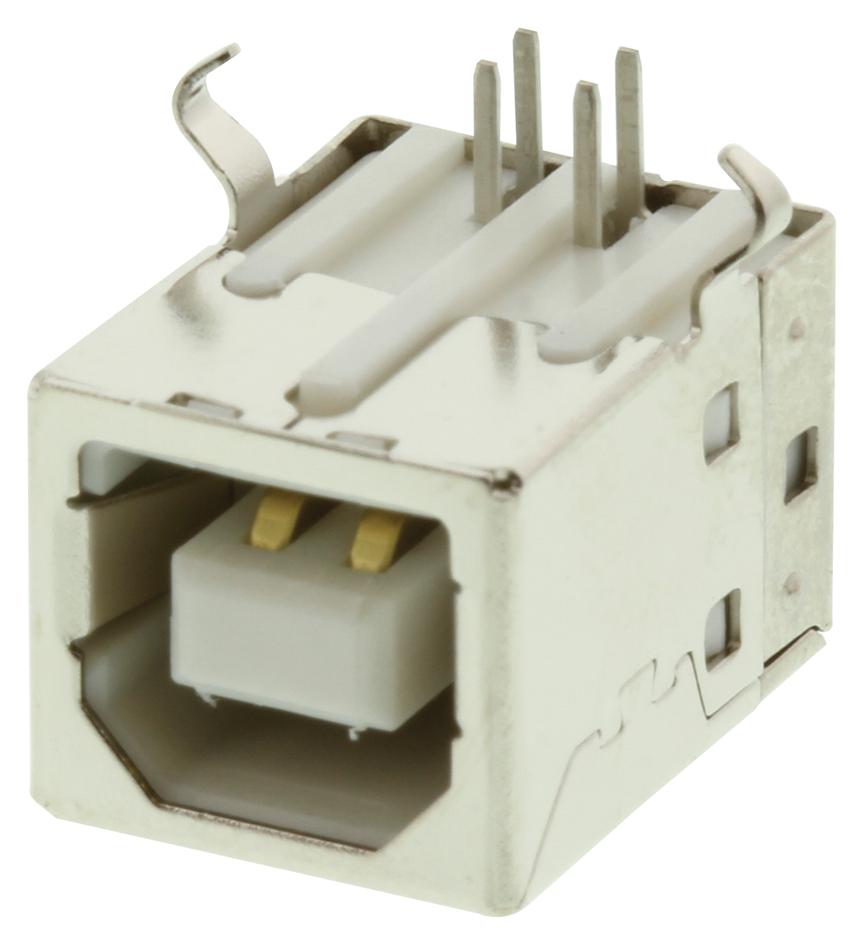

MULTICOMP PRO - MC32596 - USB Connector, USB Type B, USB 2.0, Receptacle, 4 Ways, Through Hole Mount, Right Angle

  • USB Connector Type: USB Type B
  • USB Standard: USB 2.0
  • Gender: Receptacle
  • No. of Positions: 4Ways
  • Connector Mounting: Through Hole Mount
  • Orientation: Right Angle
  • Contact Material: Phosphor Bronze
  • Contact Plating: Gold Plated Contacts
  • Product Range: -
  • SVHC: No SVHC (15-Jan-2019)
  • Connector Mounting Orientation: PCB
  • Connector Type: USB B
  • Contact Resistance: 20mohm
  • Contact Termination: Solder
  • Contact Termination Type: Solder
  • Current Rating: 1A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 1000Mohm
  • No. of Contacts: 4Contacts
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -40°C
  • Termination Method: Solder
  • Voltage Rating VAC: 30V
  • Withstand Voltage: 750V
