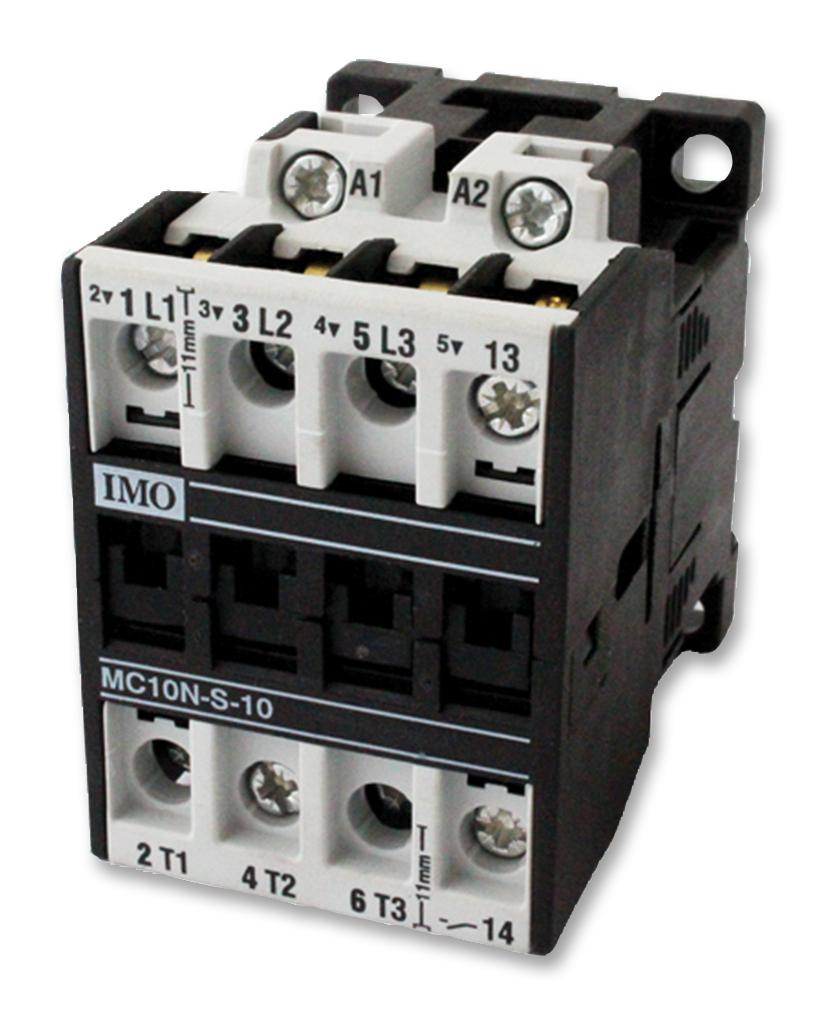

MC14N-S-10110AC Contactor, 5.5kW, 110VAC IMO Precision Controls

IMO PRECISION CONTROLSUGS :MC14N-S-10110AC Code de commande:9940502

Prix:
Prix ​​promotionnel€66,60

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
Rupture de stock

Documents et téléchargements

description

IMO PRECISION CONTROLS - MC14N-S-10110AC - Contactor, 14 A, DIN Rail, 110 VAC, 1NO, 3 Pole, 5.5 kW

  • Load Current Inductive: 14A
  • Relay Mounting: DIN Rail
  • Operating Voltage: 110VAC
  • Contact Configuration: 1NO
  • No. of Poles: 3 Pole
  • Switching Power AC3: 5.5kW
  • Switching Current AC1: 25A
  • Coil Voltage VAC Nom: 110V
  • Coil Voltage VDC Nom: -
  • Switching Power AC1: 7.5kW
  • Load Current Resistive: 25A
  • Switching Current AC3: 14A
  • Product Range: MC Series
  • SVHC: No SVHC (07-Jul-2017)
  • Approval Bodies: cUL
  • Approval Category: UL Recognised
  • Coil Holding Power: 10VA
  • Coil Operating Lower Percent Limit: 85%
  • Coil Operating Upper Percent Limit: 110%
  • Coil Pull-in Power: 45VA
  • External Depth: 65mm
  • External Length / Height: 65mm
  • External Width: 45mm
  • Main Contact Current AC1 Max: 25A
  • Main Contact Current AC3 Max: 14A
  • Operating Temperature Max: 60°C
  • Operating Temperature Min: -40°C
  • Output Voltage Max: 690V
  • Relay Type: Contactor
