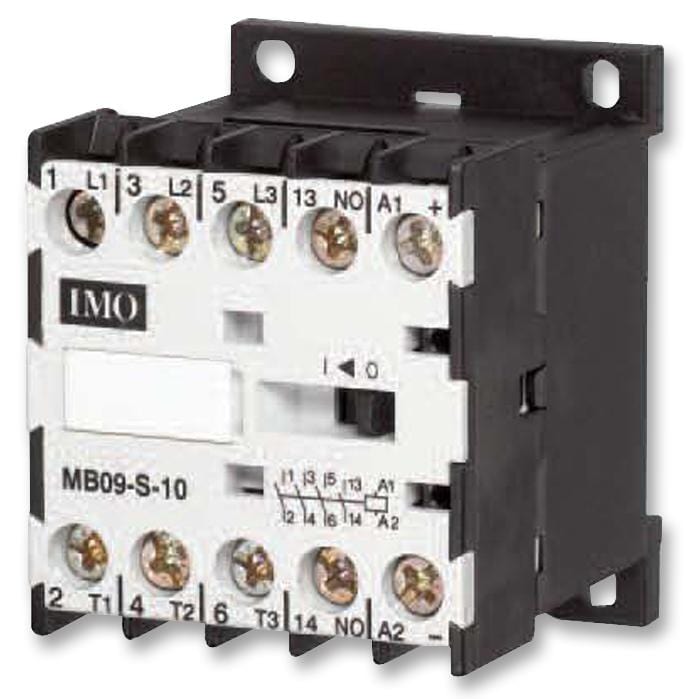

IMO PRECISION CONTROLS - MB09-S-1024 - Contactor, 9 A, DIN Rail, 690 VAC, 3NO / 1NO, 4 Pole, 4 kW
- Load Current Inductive: 9A
- Relay Mounting: DIN Rail
- Operating Voltage: 690VAC
- Contact Configuration: 3NO / 1NO
- No. of Poles: 4 Pole
- Switching Power AC3: 4kW
- Switching Current AC1: 20A
- Coil Voltage VAC Nom: 24V
- Coil Voltage VDC Nom: -
- Switching Power AC1: 4kW
- Load Current Resistive: 20A
- Switching Current AC3: 9A
- Product Range: -
- SVHC: No SVHC (07-Jul-2017)
- Approval Bodies: CSA, UL
- Aux Contact Current Max: 10A
- Coil Frequency Max: 60Hz
- Coil Holding Power: 4.5VA
- Coil Operating Frequency Min: 50Hz
- Coil Operating Lower Percent Limit: 85%
- Coil Operating Upper Percent Limit: 110%
- Coil Pull-in Power: 25VA
- Contact Current AC Max: 9A
- Contact Voltage AC Max: 690V
- External Depth: 57.5mm
- External Length / Height: 49mm
- External Width: 45mm
- Main Contact Current AC1 Max: 20A
- Main Contact Current AC3 Max: 9A
- Operating Temperature Max: 60°C
- Operating Temperature Min: -40°C
- Relay Type: Contactor
- Switching AC3 Power Max: 4kW
