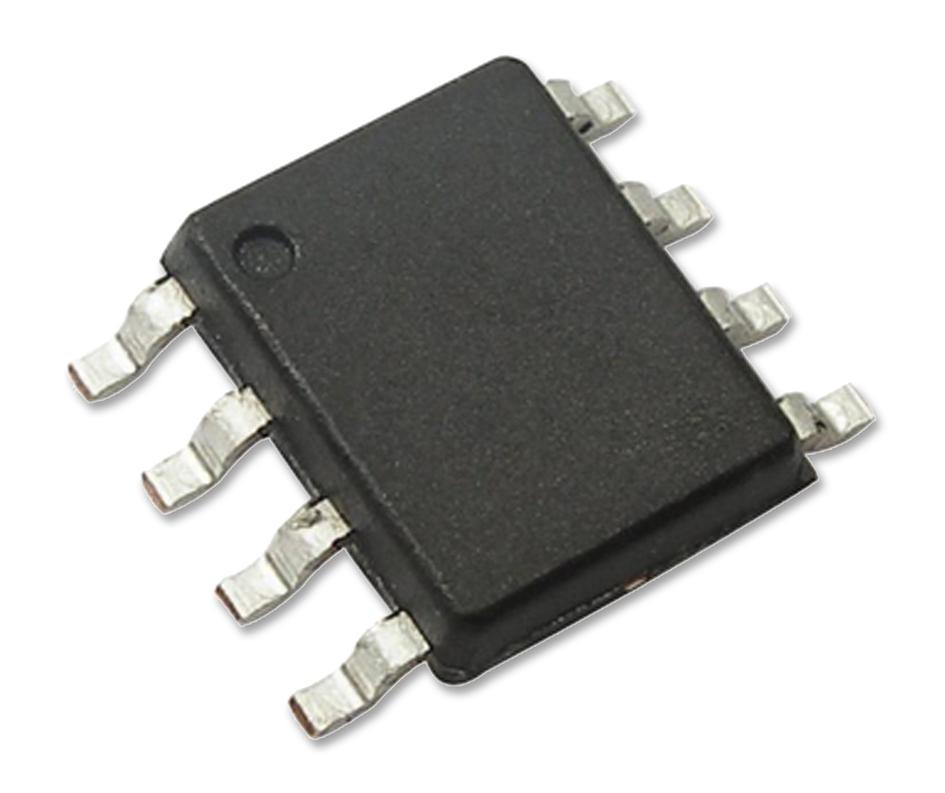

MAXIM INTEGRATED / ANALOG DEVICES - MAX865EUA+ - DC/DC Fixed Charge Pump Voltage Converter, 1.5 V to 6 V in, 12 V/20 mA out, µMAX-8
- Output Type: Adjustable
- Input Voltage Min: 1.5V
- Input Voltage Max: 6V
- DC / DC Converter IC Case: uMAX
- No. of Pins: 8Pins
- Output Current: 20mA
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: -12V
- Adjustable Output Voltage Max: 12V
- Topology: Doubler, Inverting
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 865
- No. of Outputs: 2 Output
- No. of Outputs: 2Outputs
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Output Current - Output 1: 20mA
- Output Current - Output 2: 20mA
- Output Voltage: 12V
- Output Voltage - Output 1: 12V
- Output Voltage - Output 2: 12V
- Primary Input Voltage: 5V
- Regulator Output Type: Adjustable
- Supply Voltage Max: 6V
- Supply Voltage Min: 1.75V
- Switching Frequency: 34kHz
- Termination Type: Surface Mount Device
