description

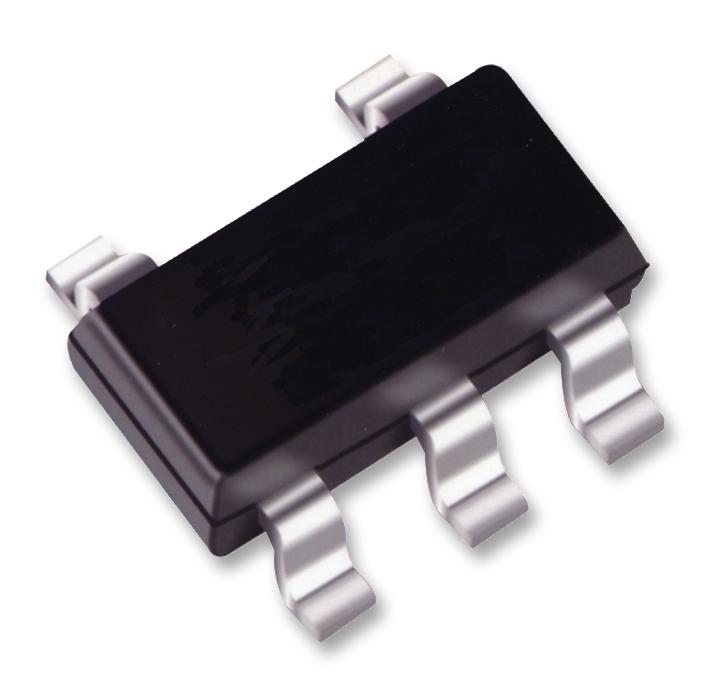

MAXIM INTEGRATED / ANALOG DEVICES - MAX828EUK+T - DC/DC Adjustable Charge Pump Voltage Converter, 1.5V to 5.5V in, -5.5V to -1.5V/25 mA out, SOT-23-5
- Output Type: Adjustable
- Input Voltage Min: 1.5V
- Input Voltage Max: 5.5V
- DC / DC Converter IC Case: SOT-23
- No. of Pins: 5Pins
- Output Current: 25mA
- Fixed Output Voltage Nom.: -
- Adjustable Output Voltage Min: -5.5V
- Adjustable Output Voltage Max: -1.5V
- Topology: Inverting
- Operating Temperature Max: 85°C
- Product Range: -
- Automotive Qualification Standard: -
- MSL: MSL 1 - Unlimited
- SVHC: No SVHC (15-Jan-2018)
- Base Number: 828
- Device Marking: MAX828EUK+T
- Dropout Voltage Vdo: 500mV
- Frequency: 12kHz
- IC Generic Number: 828
- Logic Function Number: 828
- No. of Outputs: 1Outputs
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40°C to +85°C
- Output Current Max: 0.05A
- Output Voltage: -5.5V
- Output Voltage Max: -1.5V
- Output Voltage Min: -5.5V
- Primary Input Voltage: 5.5V
- Supply Voltage Min: 1.5V
- Termination Type: Surface Mount Device
- Voltage Regulator Type: Switched Capacitor Voltage Inverter
