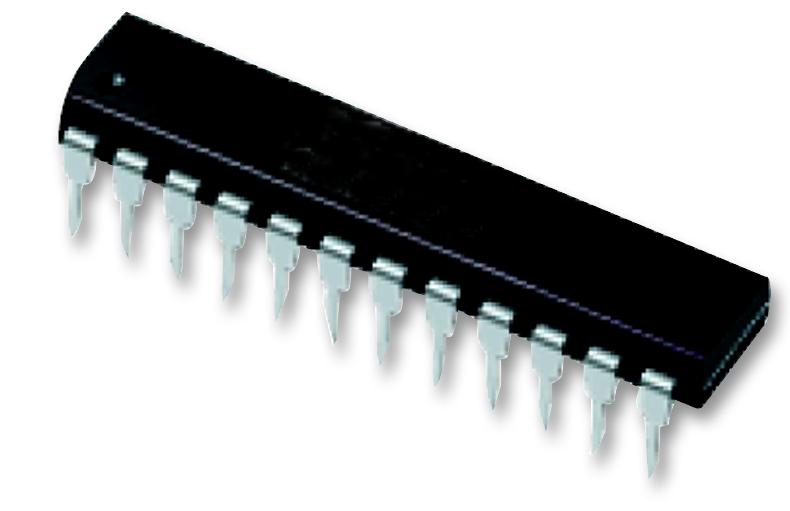

MAX132CNG+ Ic, 18bit ADC, DIP24, 132 Maxim Integrated / Analog Devices

MAXIM INTEGRATED / ANALOG DEVICESUGS :MAX132CNG+ Code de commande:2518584

Prix:
Prix ​​promotionnel€48,25

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (251 unité)

Documents et téléchargements

description

MAXIM INTEGRATED / ANALOG DEVICES - MAX132CNG+ - Analogue to Digital Converter, 18 bit, 100 SPS, Pseudo Differential, 4 Wire, Serial, Dual (+/-)

  • Resolution (Bits): 18bit
  • Sampling Rate: 100SPS
  • Input Channel Type: Pseudo Differential
  • Data Interface: 4 Wire, Serial
  • Supply Voltage Type: Dual (+/-)
  • Supply Voltage Min: -4.5V
  • Supply Voltage Max: 5.5V
  • ADC / DAC Case Style: DIP
  • No. of Pins: 24Pins
  • Operating Temperature Min: 0°C
  • Operating Temperature Max: 70°C
  • Product Range: Single 8-Bit MS ADCs
  • Automotive Qualification Standard: -
  • RoHS Phthalates Compliant: To Be Advised
  • MSL: -
  • SVHC: No SVHC (15-Jan-2018)
  • Base Number: 132
  • Conversion Time: 63µs
  • IC Temperature Range: Commercial
  • Linearity Error: 0.006%
  • Logic Function Number: 132
  • No. of Bits: 18bit
  • No. of Channels: 1Channels
  • Operating Temperature Range: 0°C to +70°C
  • Power Dissipation Ptot Max: 478mW
  • Supply Current: 60µA
  • Supply Voltage Range: ± 4.5V to ± 5.5V
  • Supply Voltage Range - Analogue: ± 4.5V to ± 5.5V
  • Termination Type: Through Hole
