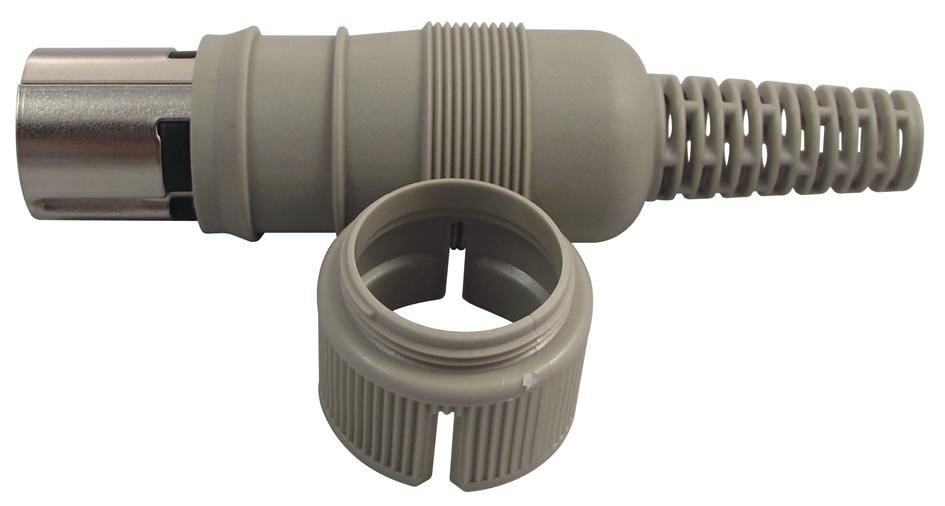

HIRSCHMANN - MAS 3100 - DIN Audio / Video Connector, 3 Contacts, Plug, Cable Mount, Solder, Tin Plated Contacts
- No. of Contacts: 3Contacts
- Gender: Plug
- Connector Mounting: Cable Mount
- Contact Termination: Solder
- Contact Plating: Tin Plated Contacts
- Connector Body Material: Plastic Body
- Product Range: -
- SVHC: Lead (27-Jun-2018)
- Cable Diameter Max: 5.5mm
- Colour: Grey
- Connector Colour: Grey
- Connector Type: DIN Audio
- Contact Resistance: 10mohm
- DC Current Max: 4A
- External Length / Height: 65mm
- Flammability Rating: UL94V-2
- Operating Temperature Max: 60°C
- Operating Temperature Min: -20°C
- Voltage Rating V DC: 34V
- Voltage Rating VAC: 24V
- Wire Area Size Max: 0.34mm²
