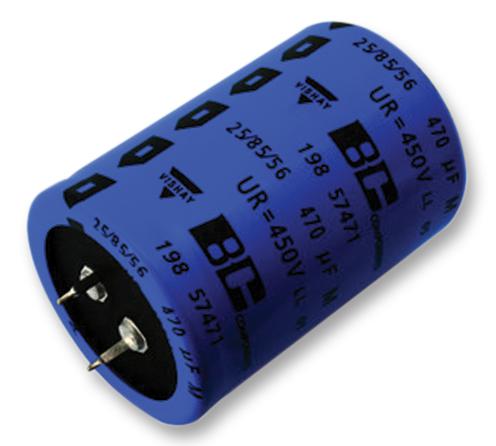

VISHAY - MAL219847151E3 - Electrolytic Capacitor, Snap-in, 150 µF, 450 V, ± 20%, Quick Connect, Snap-In, 15000 hours @ 85°C
- Capacitance: 150µF
- Voltage Rating: 450V
- Product Range: 198 PHR-SI Series
- Lifetime @ Temperature: 15000 hours @ 85°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Quick Connect, Snap-In
- Diameter: 25mm
- Lead Spacing: 10mm
- Operating Temperature Min: -25°C
- Operating Temperature Max: 85°C
- Height: 40mm
- ESR: 1.592ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 1.36A
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- Climatic Category: 25/085/56
- ESR Frequency: 100Hz
- ESR Temperature: 20°C
- External Length / Height: 40mm
- Leakage Current: 139µA
- No. of Pins: 2Pins
- Operating Temperature Range: -25°C to +85°C
- Operating life Time: 15000h
- PCB Hole Diameter: 2mm
- Ripple Current AC: 1.36A
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 450V
- Voltage Rating V DC: 450V
