Documents et téléchargements
description

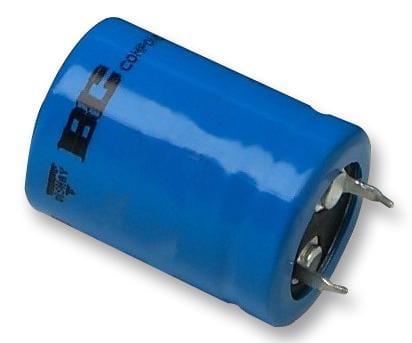

VISHAY - MAL219390102E3 - Electrolytic Capacitor, Snap-in, 330 µF, 500 V, ± 20%, Quick Connect, Snap-In, 6000 hours @ 105°C
- Capacitance: 330µF
- Voltage Rating: 500V
- Product Range: 193 PUR-SI Solar Series
- Lifetime @ Temperature: 6000 hours @ 105°C
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Quick Connect, Snap-In
- Diameter: 35mm
- Lead Spacing: 10mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 105°C
- Height: 40mm
- ESR: 0.6ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 1.74A
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- External Length / Height: 40mm
- Leakage Current: 0.9mA
- No. of Pins: 2Pins
- Operating Temperature Range: -40°C to +105°C
- Operating life Time: 5000h
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 105°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
- Voltage Rating DC Max: 500V
- Voltage Rating V DC: 500V
