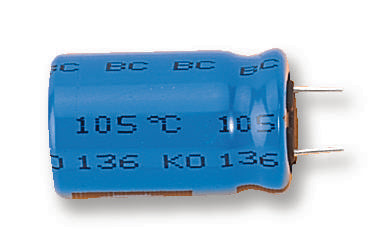

VISHAY - MAL213664222E3 - Electrolytic Capacitor, 2200 µF, 10 V, ± 20%, Radial Leaded, 8000 hours @ 105°C, Polar
- Capacitance: 2200µF
- Voltage Rating: 10V
- Product Range: 136 RVI Series
- Capacitance Tolerance: ± 20%
- Capacitor Terminals: Radial Leaded
- Diameter: 12.5mm
- Lead Spacing: 5mm
- Height: 25mm
- Operating Temperature Min: -55°C
- Operating Temperature Max: 105°C
- Lifetime @ Temperature: 8000 hours @ 105°C
- ESR: 0.15ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 1700mA
- Capacitance Tolerance ±: ± 20%
- Capacitor Mounting: Through Hole
- Climatic Category: 55/105/56
- ESR Frequency: 120Hz
- ESR Temperature: 20°C
- External Length / Height: 25mm
- Impedance: 0.034ohm
- Impedance Frequency: 100Hz
- Impedance Temperature: 20°C
- Lead Diameter: 0.6mm
- Lead Length: 5mm
- Leakage Current: 220µA
- No. of Pins: 2Pins
- Operating Life Temperature: 105°C
- Operating Temperature Range: -55°C to +105°C
- Operating life Time: 8000h
- Ripple Current AC: 1700mA
- Ripple Current Frequency: 100kHz
- Ripple Current Temperature: 105°C
- Tolerance +: 0.2%
- Tolerance -: 0.2%
