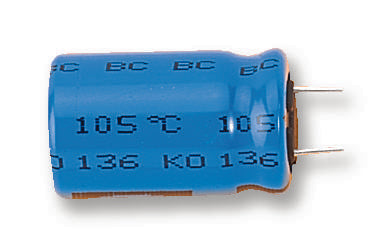

MAL213661471E3 Cap, 470µF, 50V, 20%, Through Hole Vishay

VISHAY - MAL213661471E3 - Electrolytic Capacitor, 470 µF, 50 V, ± 20%, Radial Leaded, 8000 hours @ 105°C, Polar

• Capacitance: 470µF
• Voltage Rating: 50V
• Product Range: 136 RVI Series
• Capacitance Tolerance: ± 20%
• Capacitor Terminals: Radial Leaded
• Diameter: 12.5mm
• Lead Spacing: 5mm
• Height: 25mm
• Operating Temperature Min: -55°C
• Operating Temperature Max: 105°C
• Lifetime @ Temperature: 8000 hours @ 105°C
• ESR: 0.34ohm
• Automotive Qualification Standard: -
• SVHC: No SVHC (27-Jun-2018)
• AC Ripple Current @ 100Hz: 1500mA
• Capacitance Tolerance ±: ± 20%
• Capacitor Mounting: Through Hole
• Climatic Category: 55/105/56
• ESR Frequency: 120Hz
• ESR Temperature: 20°C
• External Length / Height: 25mm
• Impedance: 0.044ohm
• Impedance Frequency: 100Hz
• Impedance Temperature: 20°C
• Lead Diameter: 0.6mm
• Lead Length: 5mm
• Leakage Current: 240µA
• No. of Pins: 2Pins
• Operating Life Temperature: 105°C
• Operating Temperature Range: -55°C to +105°C
• Operating life Time: 8000h
• Ripple Current AC: 1500mA
• Ripple Current Frequency: 100kHz
• Ripple Current Temperature: 105°C
• Tolerance +: 0.2%
• Tolerance -: 0.2%
• Voltage Rating V DC: 50V
