Description

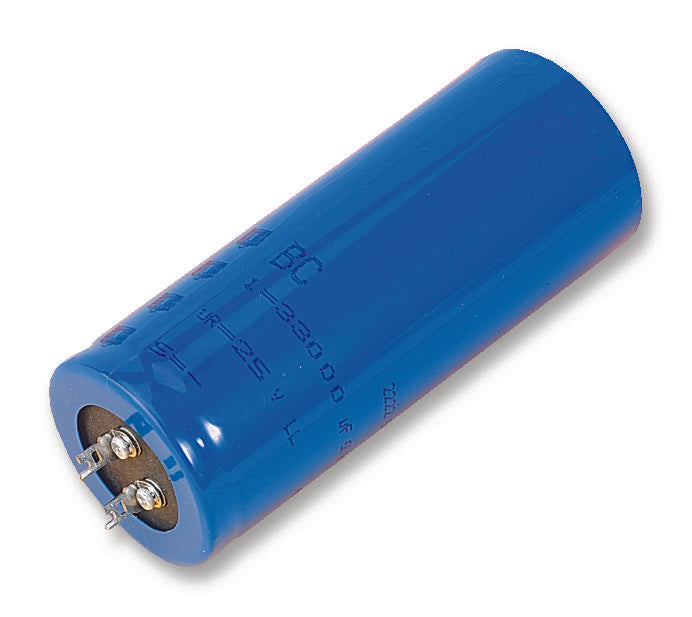

VISHAY - MAL205017472E3 - Electrolytic Capacitor, Long Life, 4700 µF, 40 V, -10%, +30%, Solder Lug, 15000 hours @ 85°C
- Capacitance: 4700µF
- Voltage Rating: 40V
- Product Range: 050 PED-PW Series
- Lifetime @ Temperature: 15000 hours @ 85°C
- Capacitance Tolerance: +30%, -10%
- Capacitor Terminals: Solder Lug
- Diameter: 35mm
- Lead Spacing: 10mm
- Operating Temperature Min: -40°C
- Operating Temperature Max: 85°C
- Height: 40mm
- ESR: 0.048ohm
- Automotive Qualification Standard: -
- SVHC: No SVHC (27-Jun-2018)
- AC Ripple Current @ 100Hz: 3.8A
- Capacitance Tolerance ±: +30%, -10%
- Capacitor Mounting: Panel
- Climatic Category: 40/085/56
- External Length / Height: 40mm
- Leakage Current: 1132µA
- No. of Pins: 2Pins
- Operating Life Temperature: 85°C
- Operating Temperature Range: -40°C to +85°C
- Operating life Time: 15000h
- Power Factor: 0.38
- Ripple Current AC: 3.8A
- Ripple Current Frequency: 100Hz
- Ripple Current Temperature: 85°C
- Tolerance +: 0.3%
- Tolerance -: 0.1%
- Voltage Rating DC Max: 40V
- Voltage Rating V DC: 40V
