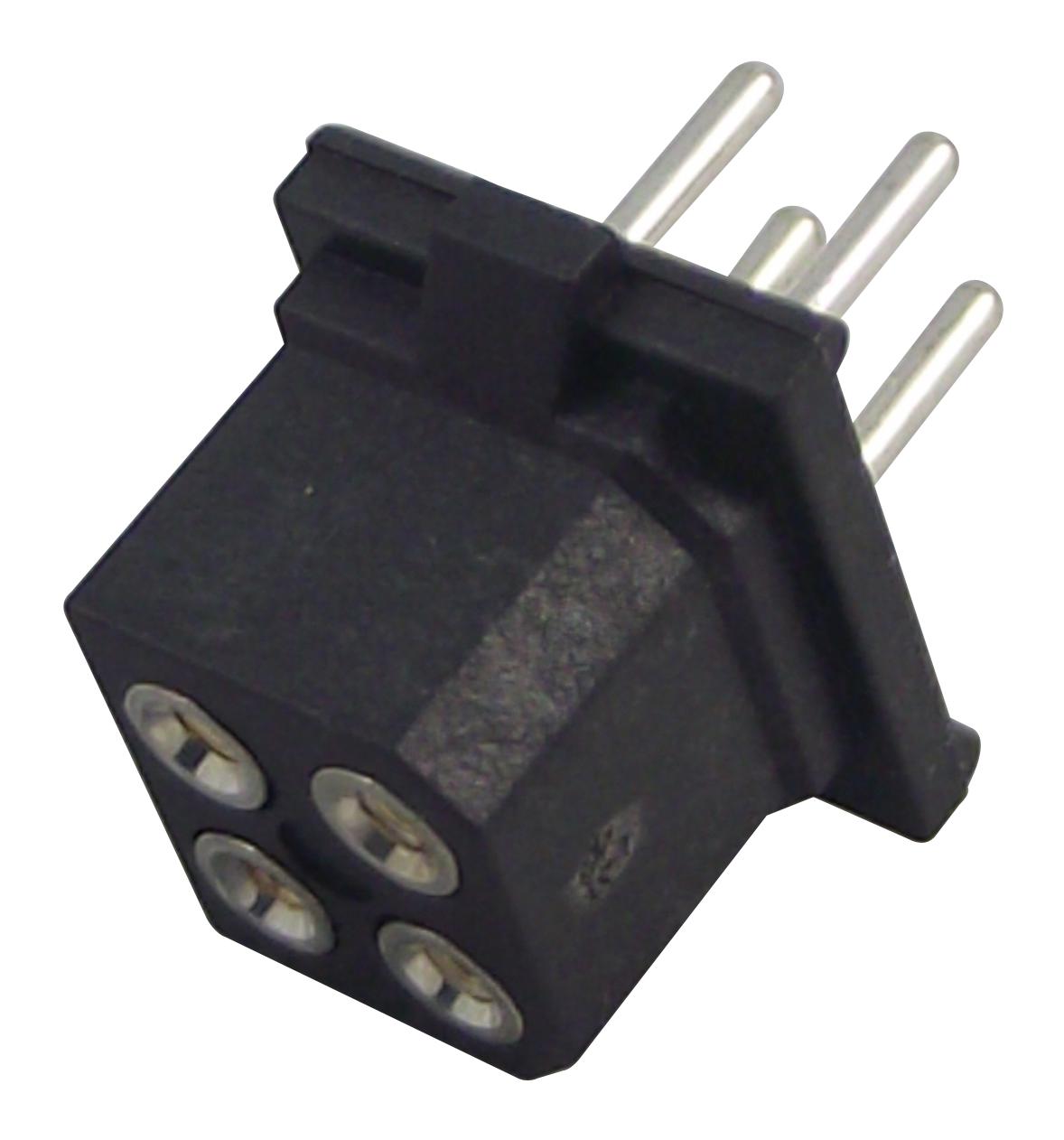

M80-8500442 Socket, Double Row, Pcb, 4WAY Harwin

HARWINUGS :M80-8500442 Code de commande:1568655

Prix:
Prix ​​promotionnel€5,26

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (263 unité)

Documents et téléchargements

description

HARWIN - M80-8500442 - PCB Receptacle, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 4 Contacts, Through Hole Mount

  • Pitch Spacing: 2mm
  • No. of Contacts: 4Contacts
  • Gender: Receptacle
  • Product Range: Datamate L-Tek M80 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Beryllium Copper
  • SVHC: Lead (15-Jan-2019)
  • Colour: Black
  • Contact Resistance: 25mohm
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 100Mohm
  • Material: Glass-Filled Polyamide 46
  • No. of Mating Cycles: 500
  • Operating Temperature Max: 125°C
  • Operating Temperature Min: -55°C
  • Row Pitch: 2mm
  • Working Voltage: 120V
