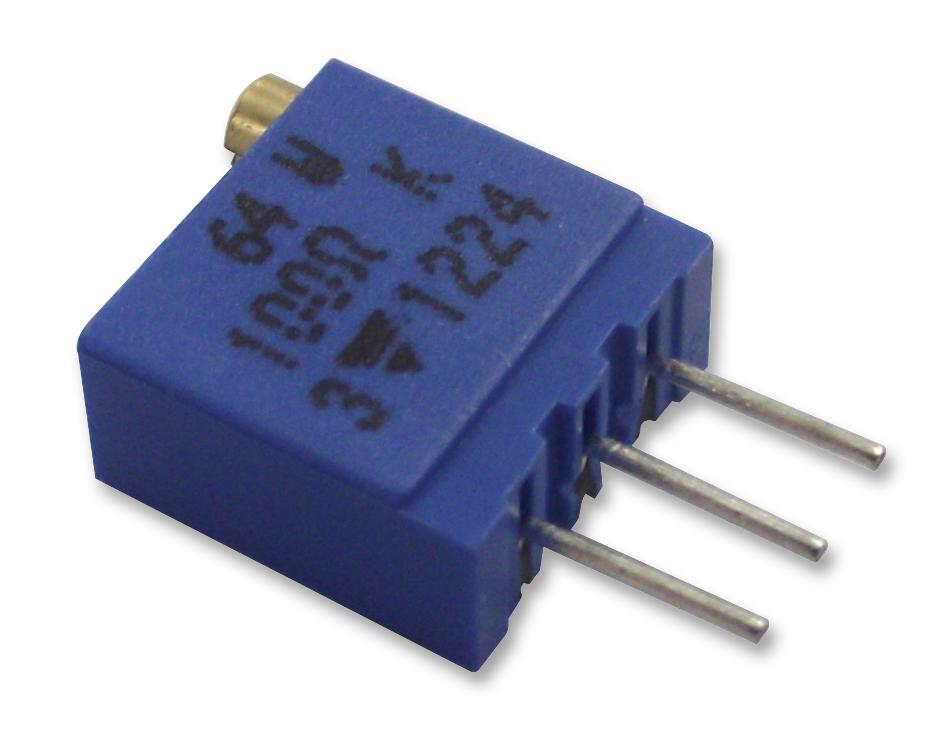

VISHAY - M64W203KB40 - Trimpot, Multi Turn, Cermet, Top Adjust, 20 kohm, Through Hole, 23 Turns
- Track Resistance: 20kohm
- No. of Turns: 23Turns
- Potentiometer Mounting: Through Hole
- Product Range: 64W Series
- Power Rating: 500mW
- Resistance Tolerance: ± 10%
- Temperature Coefficient: ± 100ppm/°C
- Automotive Qualification Standard: -
- MSL: -
- Adjustment Type: Screwdriver Slot
- Approval Category: MIL-R-22097
- Contact Resistance Variation +: 2%
- End Resistance: 1ohm
- External Length / Height: 9.91mm
- Full Power Rating Temperature: 70°C
- Lead Cross-section Depth: 0.51mm
- Lead Cross-section Width: 0.25mm
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Proof Voltage: 1000V
- Resistance: 20kohm
- Resistor Element Material: Cermet
- Resistor Mounting: Through Hole
- Resistor Terminals: Radial Leaded
- Temperature Coeff. +: 100ppm/°C
- Temperature Coeff. -: 100ppm/°C
- Tolerance +: 10%
- Tolerance -: 10%
- Track Taper: Linear
- Voltage Rating: 300V
- Voltage Rating V DC: 300V
