M20-6102045 Socket, Pc/104, STACKTHRU, 40WAY Harwin

HARWINUGS :M20-6102045 Code de commande:1569230

Prix:
Prix ​​promotionnel€10,83

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (1572 unité)

Documents et téléchargements

description

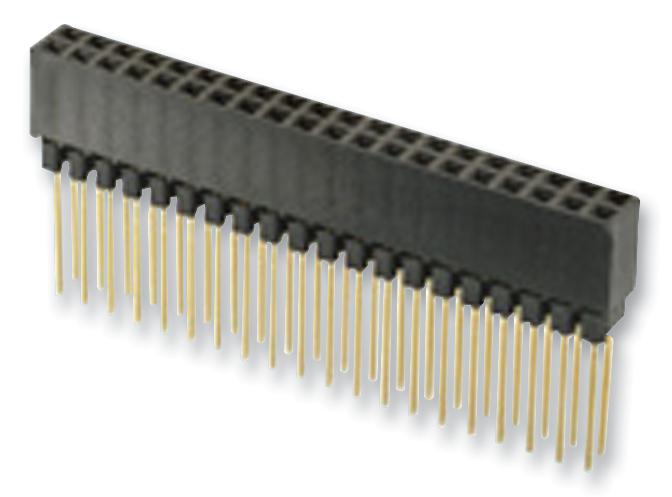

HARWIN - M20-6102045 - PCB Receptacle, Board-to-Board, PC/104, 2.54 mm, 2 Rows, 40 Contacts, Through Hole Mount, M20 Series

  • Pitch Spacing: 2.54mm
  • No. of Contacts: 40Contacts
  • Gender: Receptacle
  • Product Range: M20 Series
  • Contact Termination Type: Through Hole
  • No. of Rows: 2Rows
  • Contact Plating: Gold Plated Contacts
  • Contact Material: Phosphor Bronze
  • SVHC: No SVHC (15-Jan-2019)
  • Colour: Black
  • Contact Resistance: 10mohm
  • Contact Termination: Solder
  • Current Rating: 3A
  • Flammability Rating: UL94V-0
  • Insulation Resistance: 5000Mohm
  • Lead Spacing: 2.54mm
  • Material: High Temp. Nylon
  • Operating Temperature Max: 105°C
  • Operating Temperature Min: -55°C
  • Row Pitch: 2.54mm
  • Termination Method: Solder
  • Withstand Voltage: 1000V
