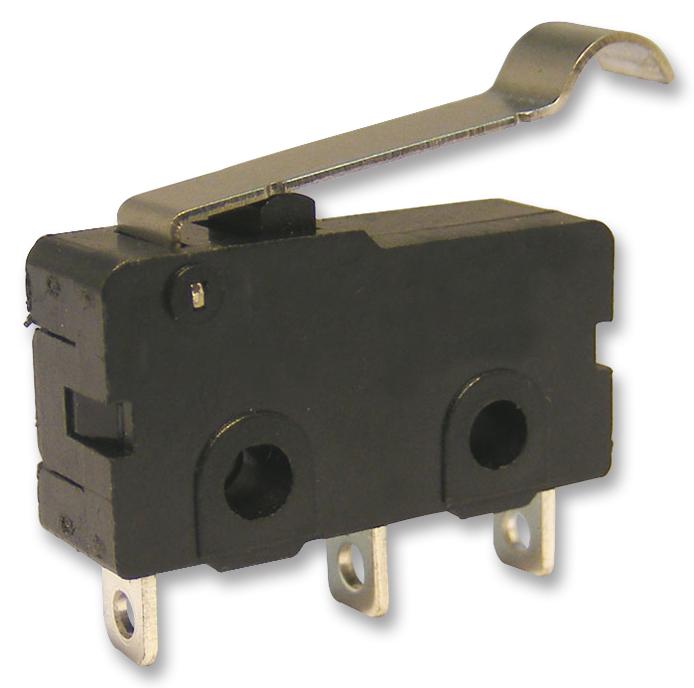

M140T01-AE0509A Microswitch, SPDT, 5A, Sim Roller multicomp Pro

MULTICOMP PROUGS :M140T01-AE0509A Code de commande:1735353

Prix:
Prix ​​promotionnel€2,05

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (2164 unité)

Documenten en downloads

description

MULTICOMP PRO - M140T01-AE0509A - Microswitch, Snap Action, Simulated Roller Lever, SPDT, Solder, 5 A

  • Microswitch Type: Snap Action
  • Microswitch Actuator: Simulated Roller Lever
  • Contact Configuration: SPDT
  • Switch Terminals: Solder
  • Contact Current Max: 5A
  • Contact Voltage DC Nom: -
  • Product Range: M140T01 Series
  • Contact Voltage AC Nom: 250VAC
  • Operating Force Max: 60gf
  • SVHC: No SVHC (07-Jul-2017)
  • Contact Current @ Contact Voltage AC Max: 5A
  • Contact Current @ Contact Voltage AC Min: 3A
  • Contact Current AC Max: 5A
  • Contact Resistance: 50mohm
  • Contact Voltage AC Max: 250V
  • Contact Voltage AC Min: 125V
  • External Depth: 6.4mm
  • External Width: 19.8mm
  • Height: 10.6mm
  • Insulation Resistance: 100Mohm
  • No. of Mechanical Operations: 100000
  • Operating Force: 0.59N
  • Operating Temperature Max: 80°C
  • Operating Temperature Min: -20°C
  • Pre-travel: 4.2mm
  • Switch Case: PBT (Polybutylene Terephthalate)
  • Switch Operation: Off-On
