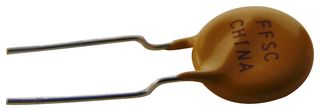

LVR016K PolySwitch, 0.16A LITTELFUSE

LITTELFUSEUGS :LVR016K Code de commande:1175834

Prix:
Prix ​​promotionnel€1,14

incl. T.V.A. Calcul des frais d'expédition à la caisse

Stock:
En stock (6 unité)

Documents et téléchargements

description

LITTELFUSE - LVR016K - Resettable Fuse, PPTC, PolySwitch LVR, 240 VAC, 160 mA, 370 mA, 15 s, Round

  • Thermistor Mounting: Through Hole
  • Product Range: PolySwitch LVR Series
  • Holding Current: 160mA
  • Tripping Current: 370mA
  • Voltage Rating: 240VAC
  • Operating Temperature Min: -40°C
  • Operating Temperature Max: 85°C
  • Automotive Qualification Standard: -
  • SVHC: No SVHC (15-Jun-2015)
  • Approval Bodies: CSA, TUV
  • Approval Category: UL Recognised
  • Carrying Current Max: 2A
  • External Depth: 3.8mm
  • External Length / Height: 13.8mm
  • External Width: 9.9mm
  • Height: 13.8mm
  • Holding Current Max Ih: 0.16A
  • Initial Resistance Max: 4.1ohm
  • Initial Resistance Min: 2.5ohm
  • Lead Length: 7.6mm
  • Lead Spacing: 5.8mm
  • Operating Voltage: 240V
  • PTC Fuse Case Style: Radial Leaded
  • Response Time: 15s
  • Thermistor Type: PTC Resettable Fuse
