description

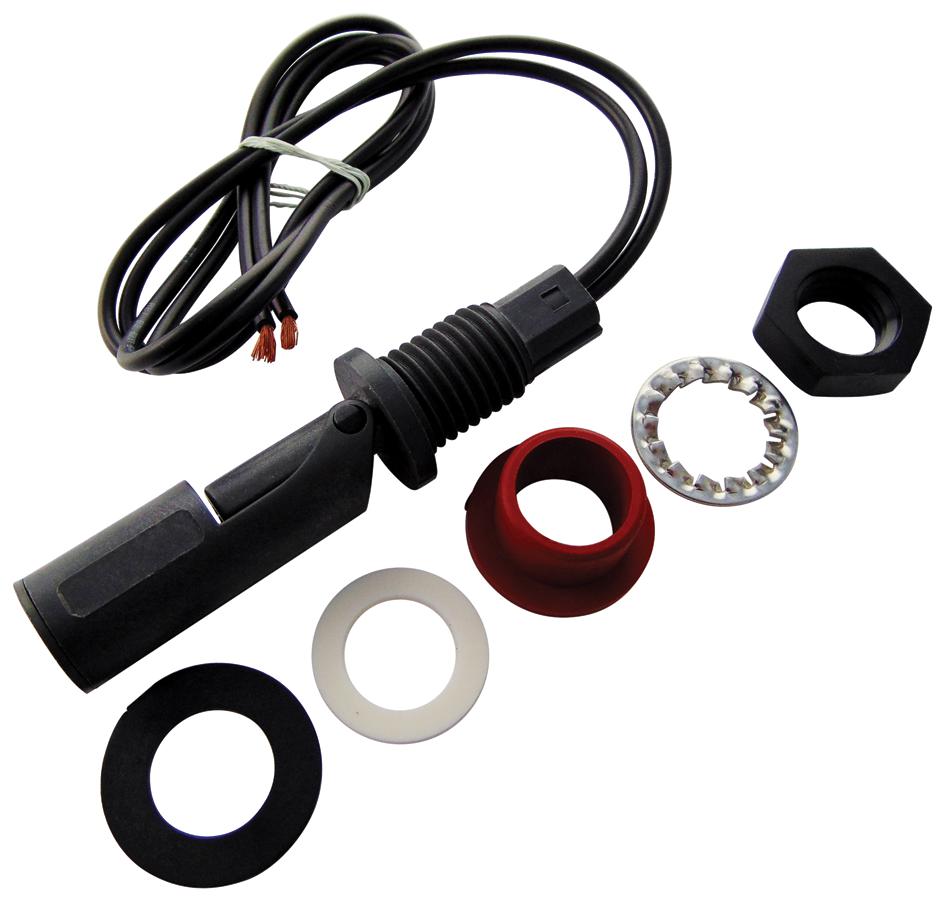

TE CONNECTIVITY - LS403-51 - Float Switch, LS Series, Horizontal, SPST-NO, Polypropylene, 15 W, 250 Vac
- Operating Pressure Max: 4bar
- Sensor Body Material: PP (Polypropylene)
- Output Current: -
- Product Range: LS Series
- Approval Bodies: WRC
- Body Material: PP (Polypropylene)
- Colour: Charcoal
- Contact Configuration: SPST-NO
- Contact Current AC Max: 1A
- Contact Voltage AC Max: 250VAC
- Contact Voltage DC Max: 200VDC
- External Length / Height: 87.9m
- Float Diameter: 17.3m
- Lead Length: 500mm
- Length: 51.59mm
- Material: Polypropylene
- Operating Pressure Range: 0bar to 4bar
- Operating Temperature Max: 110°C
- Operating Temperature Min: -30°C
- Power Rating: 15W
- Pressure Max: 4bar
- Sensor Output: SPST-NO / SPST-NC
- Specific Gravity of Liquid Min: 0.65
- Switch Operation: Off-On
- Switching Voltage AC / DC Max: 200VDC
- Switching Voltage AC / DC Min: 250VAC
- Thread Size: M16
