description

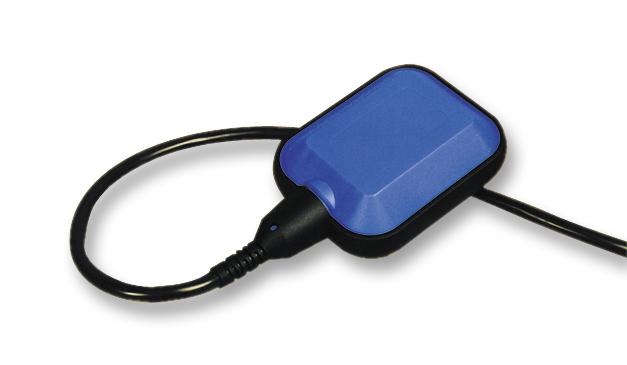

TRITON CONTROLS - LR03-L05M-CPE - Float Switch, LR03 Series, Non Mercury, CPE, 250 V, 15 A, 5 m Cable
- Operating Pressure Max: -
- Sensor Body Material: CPE (Chlorinated Polyethylene)
- Output Current: 15A
- Product Range: LR03 Series
- SVHC: No SVHC (15-Jan-2018)
- Body Material: PP (Polypropylene)
- Contact Configuration: SPDT
- Contact Current AC Max: 15A
- Contact Voltage AC Max: 250V
- External Length / Height: 103mm
- External Width: 81mm
- Lead Length: 5m
- Material: CPE
- Operating Force Max: 1.3N
- Operating Force Min: 0.9N
- Operating Temperature Max: 70°C
- Panel Cutout Depth: 40mm
- Specific Gravity: 1.3
- Specific Gravity of Liquid Min: 0.90
